For multiple units, the driver's cab of the multiple units is the core component of the multiple units, especially the console of the driver's cab, which is the control center of the entire multiple units. A large number of instruments, buttons, displays, etc. are integrated on the panel of the console, so as to monitor and control the operation status of the multiple units in real time; The purpose is to overcome the above shortcomings and provide a high-speed rail motor car cab that can be disassembled and assembled repeatedly with high assembly accuracy and efficiency.

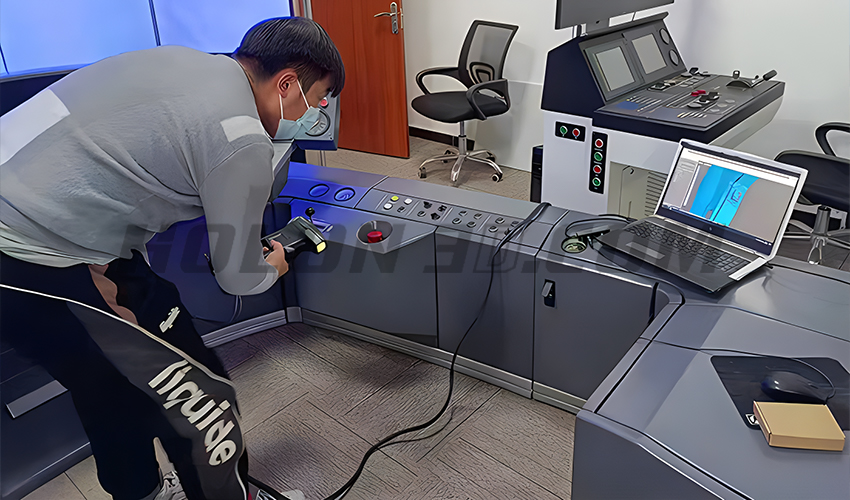

High Speed Railway Cab scanning site map
Practical problems
The scanning requirements of the bullet train cockpit are very high. There are many panel holes and complex surfaces. It is difficult to obtain the three-dimensional model data of the high-speed rail cockpit quickly and accurately by using traditional measurement methods.

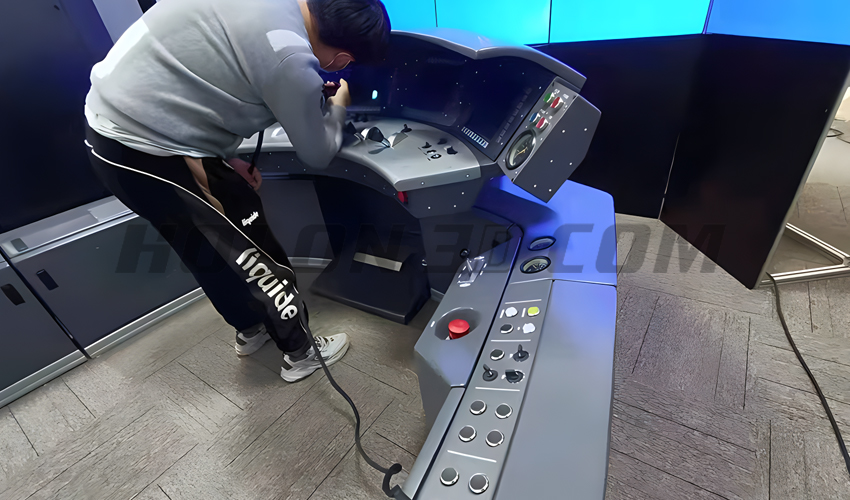

High Speed Railway Cab scanning site map
Holon solutions
In order to effectively control the overall error of 3D scanning, Hualang technical engineers proposed to use in the solution: the handheld 3D scanner Holon B71 obtains the 3D data of the motor car cockpit, imports the comparative analysis software for data comparative analysis, and checks whether it is qualified. The detailed scanning processing effect is good, which improves the product quality and inspection efficiency, and also provides reference data for later product development.
Scanning equipment: Handheld 3D scanner Holon B71
Product features:
1. Small size, light weight (920g), easy to carry and use
2. Without external AC power supply, it can be used out of the box without calibration
3. Using corner measurement, the scanning speed is faster
4. With original reflective marking points, the positioning accuracy is higher
5. He is particularly good at scanning objects with complex shapes (such as cars and interior parts), with high efficiency, good effect and no blind spot

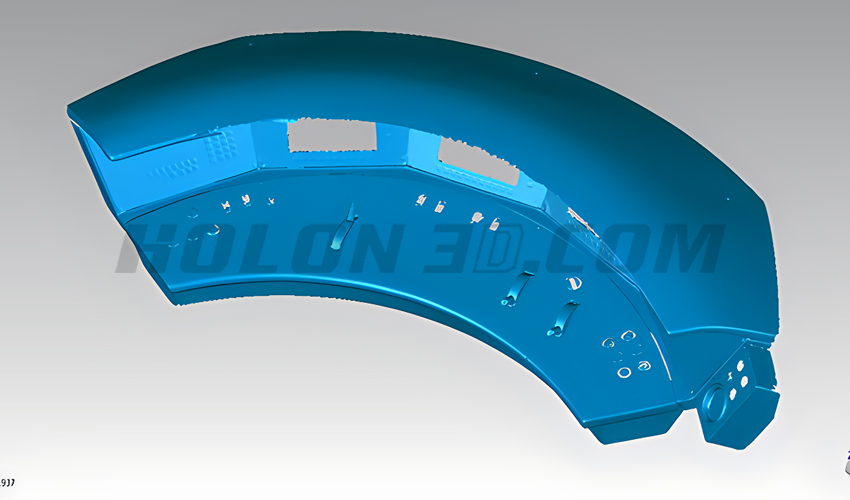

Scanning STL data diagram of High-speed Railway Cab
