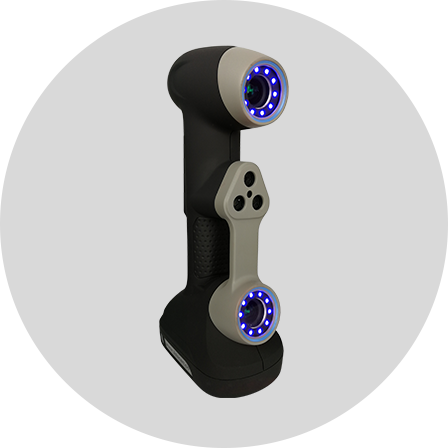

HOLON 751

HOLON 751 handheld 3D scanner has high scanning accuracy and fast speed

HOLON751 adopts the latest handheld design, light weight (0.83kg), easy to carry; ready to use; 14 laser lines + additional 1 beam scanning deep hole, + additional 5 scanning details, a total of 20 laser lines, the scanning speed is faster Faster, higher precision, stronger stability, dual industrial cameras, automatic marker splicing technology and self-developed scanning software have ultra-high scanning accuracy and work efficiency. This product has been widely used in the field of reverse engineering and three-dimensional inspection. The process is flexible and convenient, suitable for various complex application scenarios.

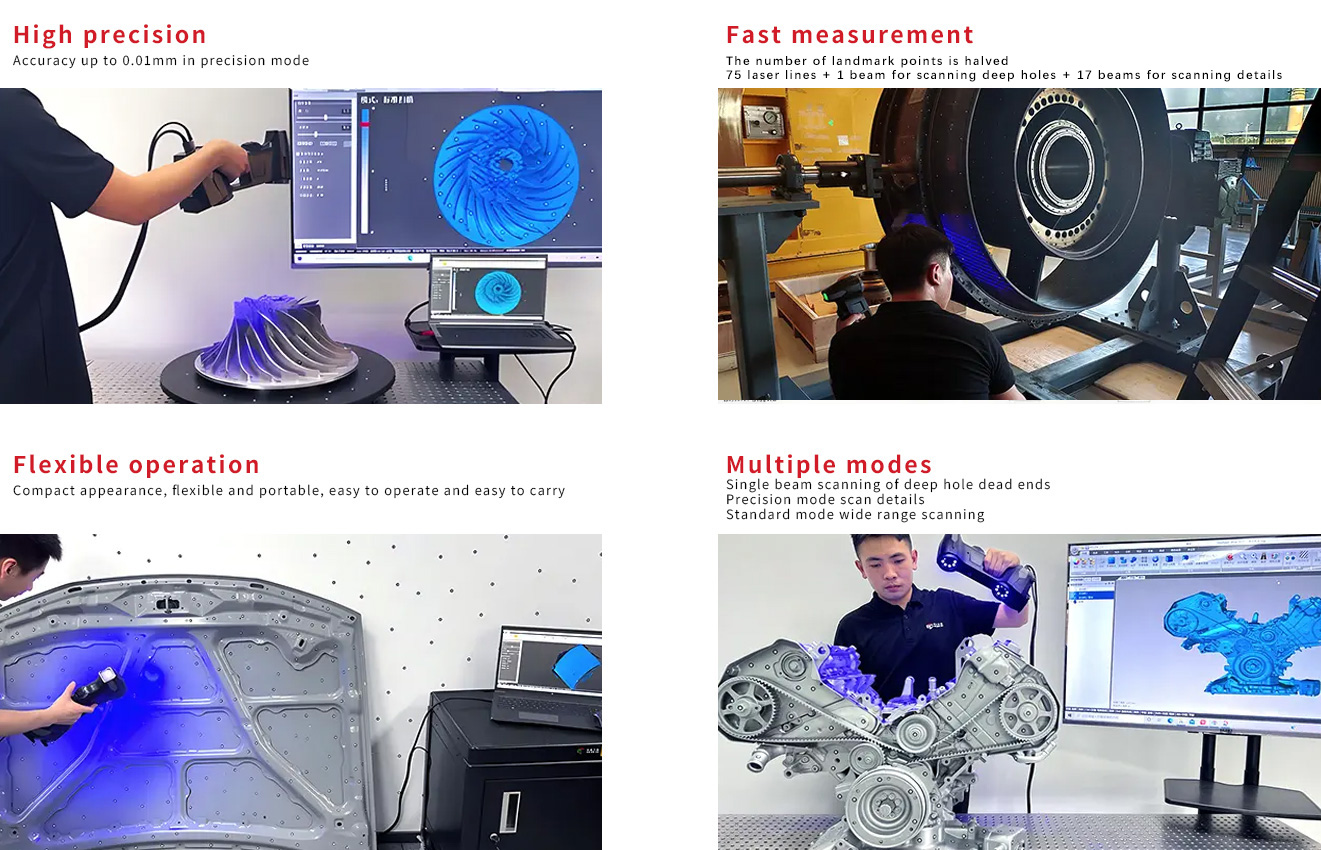

Product features

● High precision

   The single-machine measurement accuracy is as high as 0.01mm,

and large and medium-sized objects can be easily scanned without t

he help of a photogrammetric system


   ● Light source form

      20 blue laser lines, faster scanning speed and higher precision

● Fast measurement

   The number of marking points is halved, 14 laser lines + 1 scanning

depth + 5 scanning details

   ● Single laser

      Can be switched to a single laser scanning mode, suitable for scanning deep dead angles

● Flexible operation

   Industrial design, small size, light weight (0.83kg), flexible and convenient,

easy to operate, greatly improve work efficiency, new independent research

and development technology is guaranteed

   ● Measurement accuracy

      Up to 001mm, resolution up to 002mm, not affected by the

environment, limited by workpiece structure and user capabilities

● Real-time visualization

   You can see what you are doing on your computer screen and what you need to do

   ● Industrial design

      Light weight (0.83kg), easy to carry, ready to use, high efficiency

work, new independent research and development technology is guaranteed


Technical advantages

Advanced laser technology

The blue laser light source is used to improve the scanning accuracy and adaptability. Product details can be clearly captured, and the scanning data fineness has been greatly improved

Industrial design

The scanner is small and easy to carry, and can be operated with one hand; the button design is flexible to control, and there is no need to go back to the computer interface for operation. Can improve the efficiency of work scanning, safe and secure

Photogrammetry function

The system has its own photogrammetry function, which makes the scanning accuracy higher and the technical level is better than that of the same industry

Environmental adaptability

It is not affected by the environment, adapts to various complex application environments, and has good adaptability; it can be used in various environments and three-dimensional applications of different sizes of surfaces

specification

Product numberHOLON 751HOLON 751 Pro

Scan mode

Standard scan

Fine scan

Standard scanFine scan

weight

0.83kg

1.0kg

Scan range

600×550mm
Measurement rate650000 measurements/sec450000 measurements/sec1050000 measurements/sec450000 measurements/sec
Laser light source14 blue laser lines +5 detailed scans + 1 deep hole scan22 blue laser lines +5 detailed scans + 1 deep hole scan
ResolutionUp to 0.02mm
Splicing methodAutomatic stitching of logo points
Data accuracyMaximum: 0.02mmMaximum: 0.01mmMaximum: 0.02mmMaximum: 0.01mm
Datum distance300mm
150mm300mm150mm
Scan depth of field450mm150mm450mm150mm
size310 x 147 x 80 mm290 x 125 x 70 mm
Volumetric accuracy0.02 + 0.035 mm/m/0.02 + 0.035 mm/m/
Volumetric accuracy (combined with HL-3DP)0.02 + 0.015 mm/m/0.02 + 0.015 mm/m/
Output format.stl, .obj., .ply, .txt, .asc, .xyz, etc., can be customized
transfer methodUSB 3.0
power supplyAlternating current (110-240V)
Operating temperature-20-+40 °C
Operating humidity range (non-condensing)10-90%
Compatible software3DSystem (Geomagic Solutions), lnnovMetric Software (polyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (lnvebtor, Alias, 3ds Max, Maya, Softimage), Rhino

video

Product accessories

荧光标志点

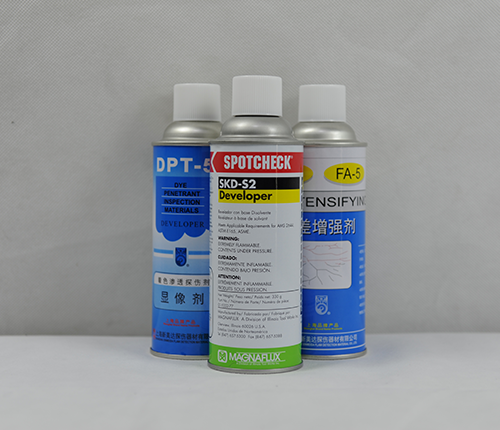

显像剂

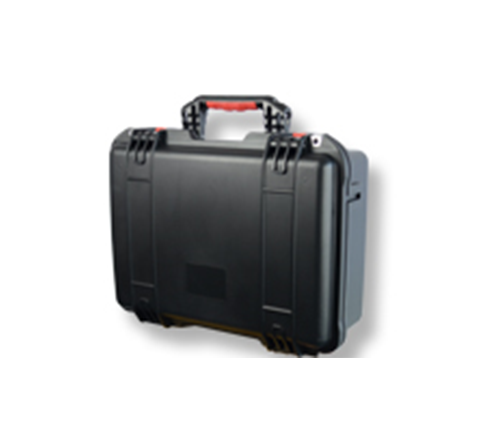

仪器箱
