Adopt heterodyne multi-frequency phase shift grating technology to improve the quality of scanning point cloud

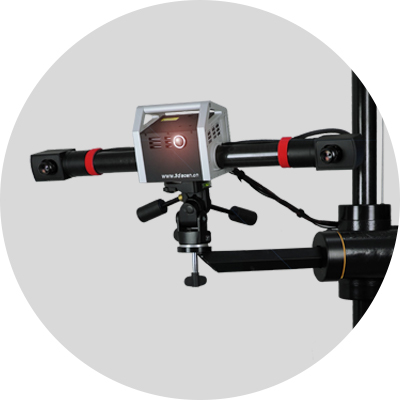

Holon camera-type 3D scanner adopts new international coding calibration technology, which is the core mastery and application of 3D photogrammetry technology, reduces physical distortion and improves the scanning accuracy of original 3D data. Adopt heterodyne multi-frequency phase shift grating technology to improve the quality of scanning point cloud. Synchronized with the German gom company, it truly has a blue light device scanning system, and at the same time the camera-type three-dimensional scanner scans the data point distance of up to 0.01mm, which is suitable for fine workpiece scanning; adopts a new core design concept and uses carbon fiber materials to improve the stability of the product when working .

Product features

●High efficiency

  Ready to use, no need for external power supply, fully independent

research and development echnology is guaranteed

   ●Complete accessories

     Quality accessories, dedicated heavy-duty and durable PTZ, console

●High cost performance

  No need for photogrammetry, can complete large-scale measurement

   ●Heterodyne multi-frequency phase shift grating

     Uniform fringe projection, high point cloud data accuracy, no noise data

●High stability

   Using carbon fiber components, strong thermal shock resistance,

low thermal deformation coefficient, to ensure higher scanning

accuracy and greater stability of the equipment

   ●13-step coding calibration technology

      Eliminate lens distortion errors and improve scanning accuracy

●Anti-collision design

  Anti-collision design protection, multi-mode switching

   ●High precision

     The comprehensive scanning accuracy can reach ±0.10mm/4m,

compatible with the photogrammetric system, so that the scanning

speed is faster, ±0.04mm/4m

Technical advantages

Industrial design

The hardware is small and uses less space; it is convenient to carry around, easy to disassemble and assemble; a variety of scanning modes can be selected at will

Industrial lens

Imported original lens, scanning noise rate is extremely low, million-level industrial lens, optical distortion is small

High scanning accuracy

With photogrammetry system scanning, the cumulative scanning accuracy is extremely high, and the single-machine scanning can complete the scanning of about 4m workpieces

Calibration technique

Adopt 13-step coding calibration technology to eliminate lens distortion error and improve scanning accuracy


Product modelα7000
Field of applicationAutomotive vehicles and parts, molds, large castings, aircraft parts, boats, large blades, construction machinery, etc. Reverse engineering, three-dimensional inspection
scanning methodNon-contact 3D scanning (photographed 3D scanning)
scanning methodMicrostructured light projection, extrapolation multi-frequency phase shifting technology (optional: blue/white light)
Calibration techniqueRing code calibration (13 steps)
Single scan range (mm)Independent mode800×600
Adjustment mode1200×900
Single measurement accuracy (mm)±0.01
Single-sided scan time (S)<5,<3
Stitching methodFully automatic intelligent stitching, manual feature stitching
Scannable object range (mm)100~15000
Average sampling point distance (mm)0.15-0.97
Industrial 3D Photogrammetry (Accuracy)Support industrial 3D photogrammetric splicing engineering coordinate point file import (≤±0.04mm/4m)
Industrial camera resolution pixel1.13 million pixels (optional 2 million, 3 million or 5 million pixels)
Camera platform360 degree free adjustment platform
Camera angle18 degrees, 27 degrees, 32.5 degrees
Industrial lens (mm)8,12,16,25, depending on model configuration
Calibration unitGranite/carbon fiber
Industrial consoleHeavy mobile console
Equipment rackMilitary carbon fiber material rack
Data output formatASC,STL,PLY, IGES
operating systemWindows xp/windows 7/windows 10 32 bit / 64 bit Chinese / English
Light source, energy (W)Standard 100 W halogen lamp; LED 50 W high energy LED (White); high energy lamp (HPL) 250 W halogen lamp
Working temperature, power supply-10℃~50℃、100~240V AC
Scanning deviceSystem size (mm)360×150×125
                                    Weight(kg)                                                                                                 3.0

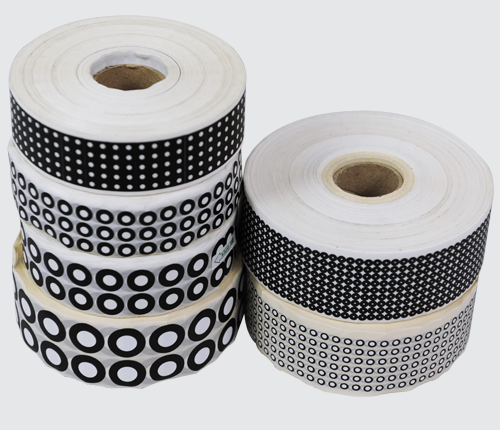

Product accessories
