As the "heart" of new energy vehicles, battery technology plays a crucial role in their normal operation and is also a key link in the upgrading and breakthrough of the new energy industry chain. The customer needs to check if the battery installation is in place.

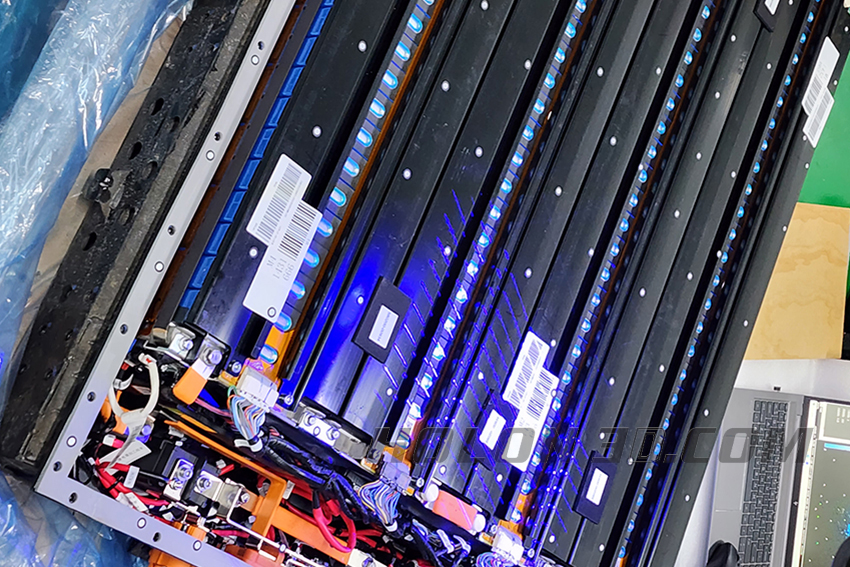

Physical picture of car battery pack
Practical problems The battery pack is a precision workpiece with a complex and uneven surface, a complex structure, and wire connections on the side. Customers have high requirements for data accuracy, and traditional measurement techniques are difficult to obtain high-precision data, which cannot meet the measurement results that customers need.

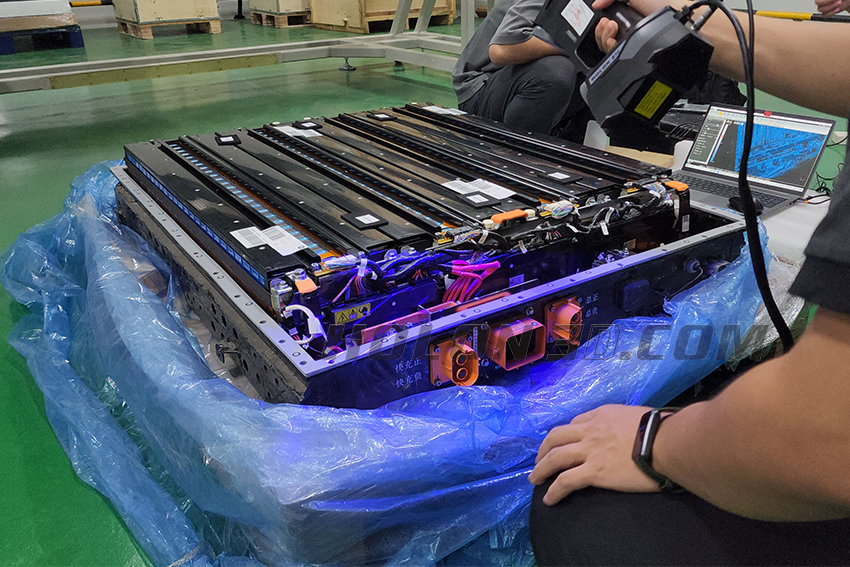

Scanning image of battery pack on site
Holon solutions For complex surface features, Hualang engineers use a handheld 3D scanner HOLON B71, with a fine mode of 7 parallel laser lines and an accuracy of up to 0.01mm. Real time visualization scanning, synchronized data generation, simple operation, and fast scanning speed. Import the obtained data into 3D detection software for analysis, quickly and easily obtain comparative analysis reports to determine whether the overall installation of the battery is qualified and meets customer needs.

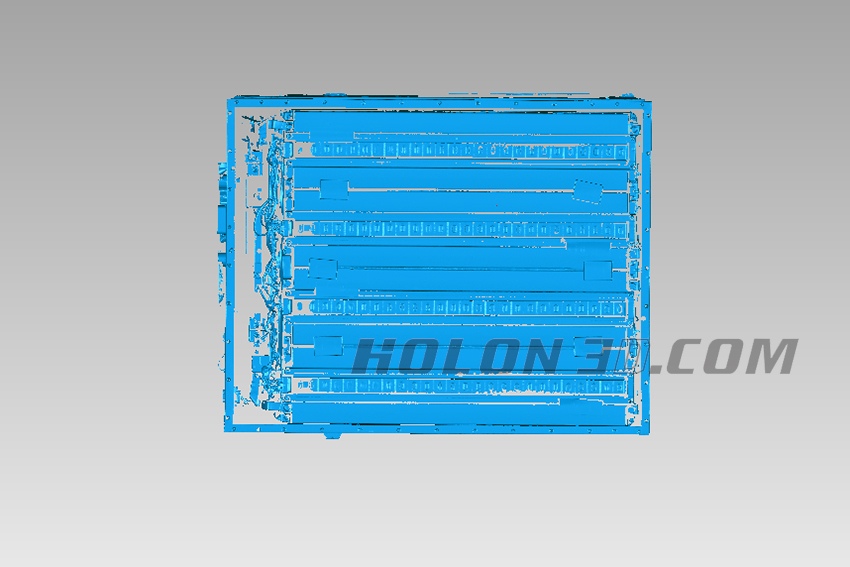

Car battery pack STL data chart

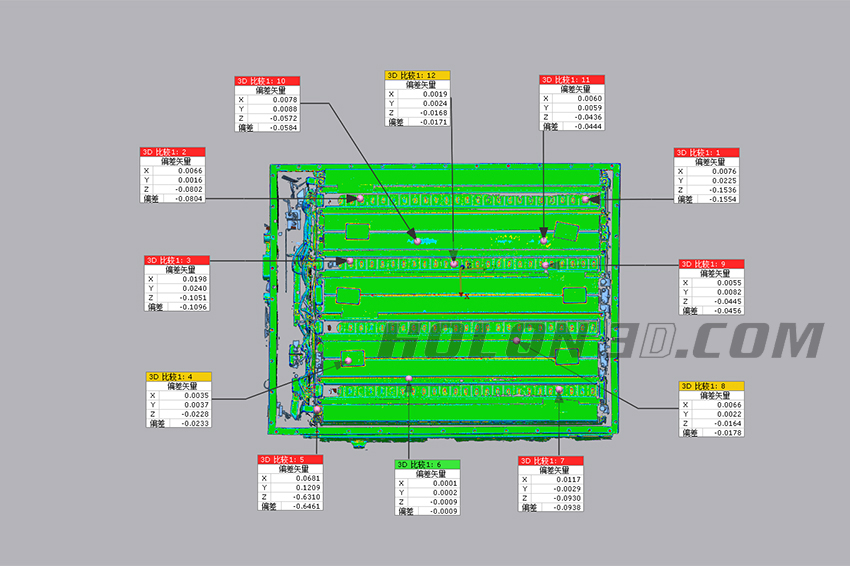

Comparison and inspection diagram of car battery pack
