Model | Model 49 |

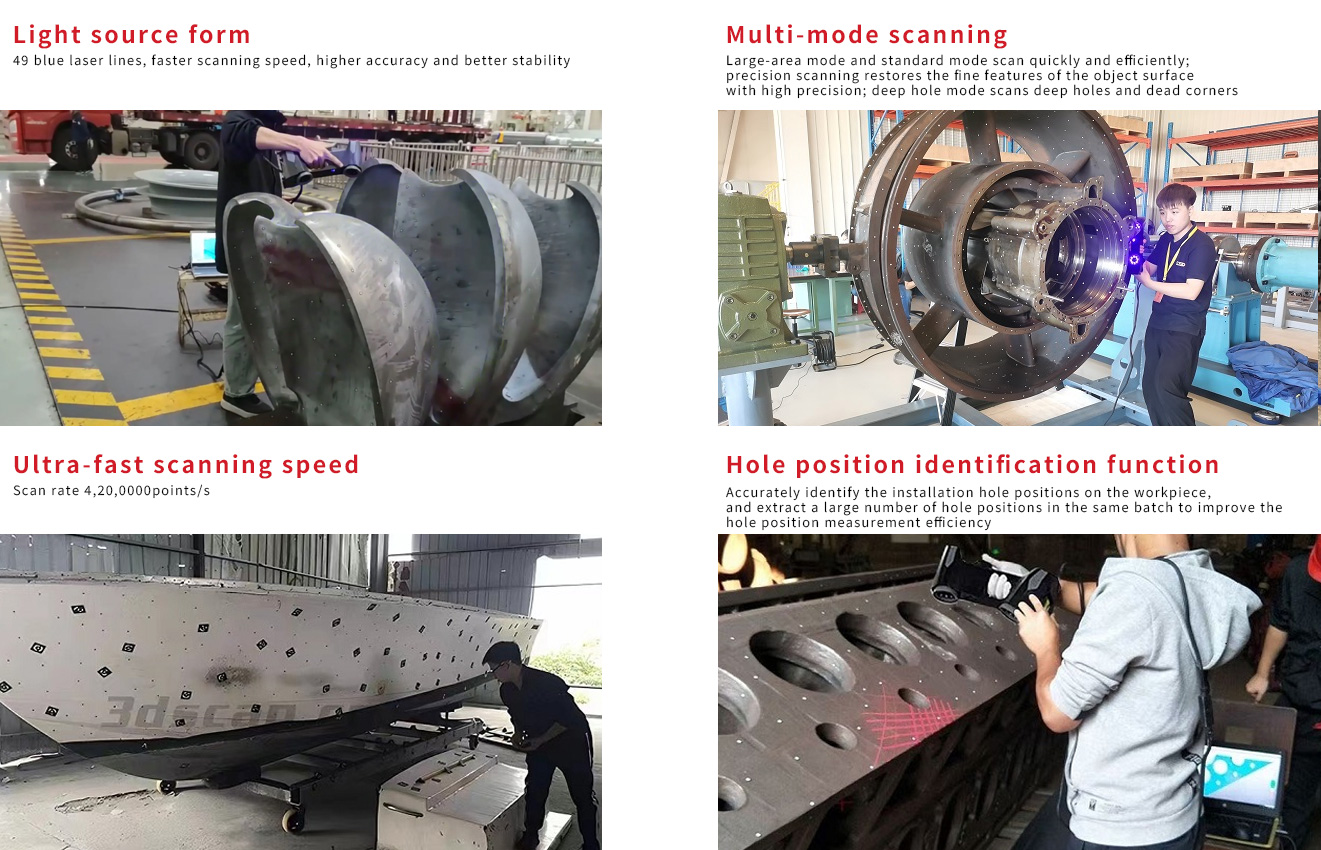

Light source | 49 blue laser lines (wavelength: 450nm) |
Measurement Rate | 4,200,000points/s |
Scan mode | Wide-Range mode | Standard mode | Precision mode | Deep hole mode |
34 crossed blue laser lines | 14 crossed blue laser lines | 1 blue laser line |
Data precision | 0.02mm | 0.01mm | 0.02mm |
Scanning distance | 370m | 200mm | 370mm |
Scan depth of field | 550mm | 200mm | 550mm |
Resolution | 0.01mm(max) |
Scanning area | 600X550mm(max) |
Scanning range | 0.1-10m (expandable) |
Volume Accuracy (Photogrammetry) | 0.02+0.03mm/m |
Accuracy of 0.02+0.015mm/m when integrated with a Global 3D Photogrammetry System |
Operating software | HLScan (free lifetime upgrade) |
Data formats | asc, stl, ply, obj, igs, wrl, xyz, txt, etc., can be customized |
Compatible software | 3D Systems (Geomagic Solutions), InnovMetric Software (PolyWorks), Dassault Systemes (CATIA V5 and SolidWorks), PTC (Pro/ENGINEER), Siemens (NX and Solid Edge), Autodesk (Inventor, Alias, 3ds Max, Maya, Softimage) wait |
Data transmission | USB 3.0 |
Computer configuration (optional) | Win10 64-bit; video memory: 4G or above; processor: I7-13700 and above; memory: 64 GB |
Laser safety level | ClassⅡ (eye safety) |
Certification number (Laser certificate): LCS200726001DS |
Weight | 730g |
Size | 222 X 104 X 61mm |
Temperature/ humidity | -10—40℃；10-90% |
Power supply | Input:100-240v,50/60Hz,0.9-0.45A；Output:24V,1.5A,36W(max) |
Certification | CE、IC、FCC、ROHS、ISO9001 |
Patent | ZL201220386542.3，ZL201220386546.1，ZL201520174157.6，ZL201721695684.7，ZL201520174106.3，ZL201420058854.0，ZL201721376035.0，ZL201330658475.6，ZL201130007136.2，ZL201130007145.1，ZL201130007141.3，ZL201720362488.1，ZL201720349729.9，ZL201720362493.2，ZL201720369852.7，ZL201720369914.4，ZL201720369921.4，ZL2021102492208.4 |
Warranty Period | 24 months |
