HOLON B71

Fast scanning speed, high accuracy, strong stability, flexible use, wide application scenarios

The latest handheld design, light weight, extremely easy to carry; 22 laser lines + 1 beam scanning deep hole + 7 scanning details, a total of 30 laser lines, fast scanning speed, high precision, strong stability, dual industrial cameras, marking points Automatic splicing technology and self-developed scanning software have ultra-high scanning accuracy and work efficiency. It is widely used in the field of reverse engineering and three-dimensional inspection, and the operation is flexible and convenient, and it is suitable for various complex application scenarios.

Product features

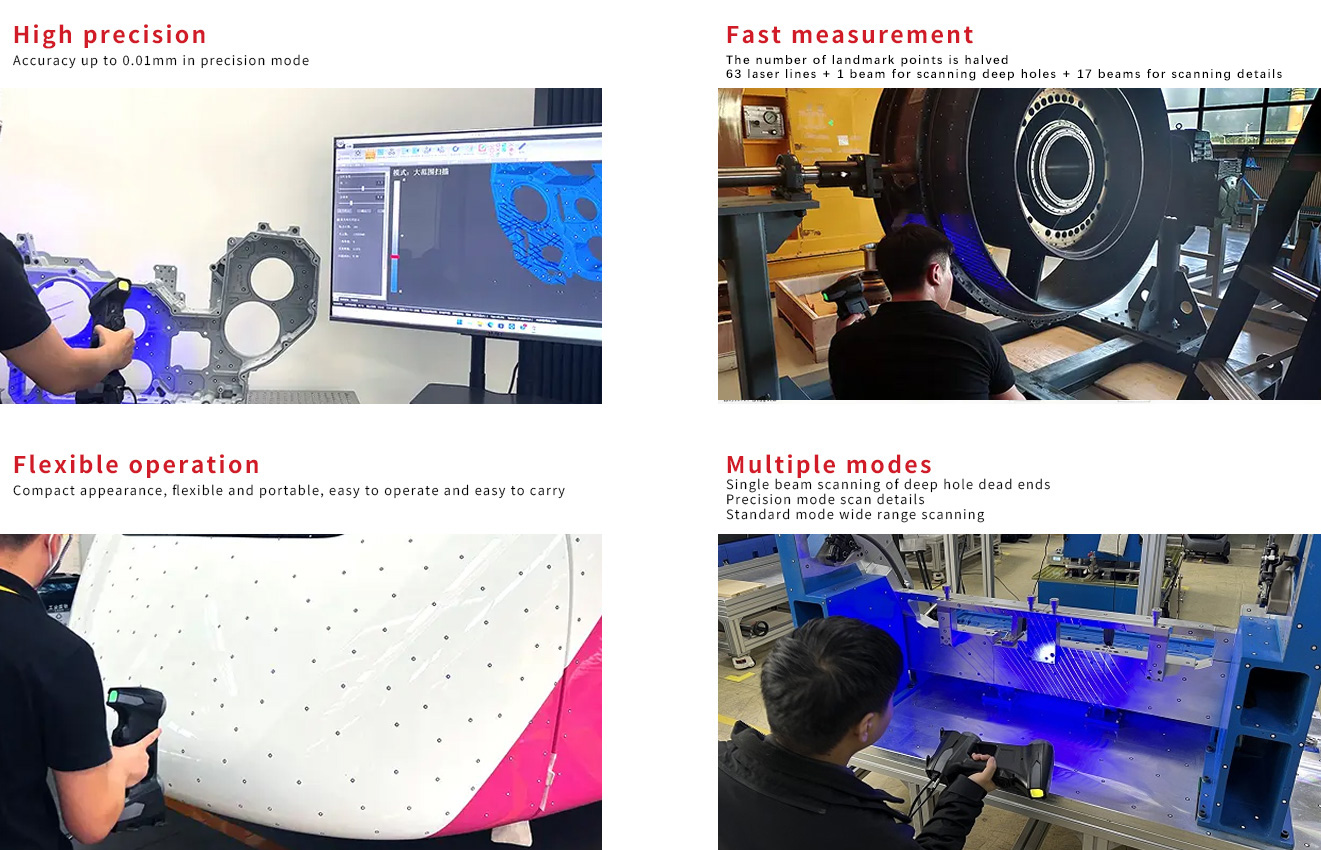

● High precision

   Fine mode measurement accuracy up to 0.01mm


   ● Industrial design

      Light weight, ready to use, high efficiency work, new i

ndependent research and development technology is guaranteed

● Fast measurement

   22 laser lines + 1 scanning depth + 7 scanning details

   ● Real-time visualization

      You can see what you are doing on your computer screen and what you need to do

● Light source form

   Blue laser line, faster scanning speed and higher precision

   ● Flexible operation

      Small size, flexible and convenient, easy to operate, easy to carry

● Multiple modes

  Single beam scanning deep holes and blind spots; fine

mode scanning details; standard mode large-format scanning



Technical advantages

Advanced laser technology

The blue laser light source is used to improve the scanning accuracy and adaptability. It can clearly capture the details of the product, has a single-beam relationship of scanning deep holes and dead angles, and has high scanning data accuracy.

Intelligent industrial design

The scanner is small in size, easy to carry, and can be operated with one hand; the button design is flexible to operate, and there is a distance prompt. Can improve the efficiency of work scanning, safe and secure

High scan data accuracy

The system has its own photogrammetry function, which makes the scanning accuracy higher and the details of the scanning process are clearly visible

Wide range of applications

Unaffected by the environment, adapt to various complex application environments, with good adaptability; can be used in various environments and three-dimensional applications with different sizes of surfaces

specification

Product model

HOLON B71

Light source

30 blue laser lines (wavelength: 450nm)

Measuring speed

2,020,000points/s

Scan mode

Standard mode

Deep hole mode

Precision mode

22 crossed blue laser lines

1 blue laser line

7 parallel blue laser lines

Data accuracy

0.02mm

0.02mm

0.01mm

Scanning distance

330mm

330mm

180mm

Scan depth of field

550mm

550mm

200mm

Resolving power

0.01mm(max)

Scanning area

600×550mm

Scanning range

0.1-10M(expandable)

Volumetric accuracy

0.02+0.035mm/m

0.02+0.015mm/m  combined with hl-3dp 3D global Photogrammetry System (optional)

Operating software

HLScan(lifetime free upgrade)

Support data format

asc、stl、ply、obj、igs 、wrl、xyz、txt Etc., customizable

Compatible software

3D Systems(Geomagic Solutions)、InnovMetric Software(PolyWorks)、Dassault Systemes(CATIA V5和SolidWorks)、PTC(Pro/ENGINEER)、Siemens(NX和Solid Edge)、Autodesk(Inventor、Alias、3ds Max、Maya、Softimage)Etc.

Data transmission

USB 3.0

Computer configuration (optional)

Win10 64 bit; Video memory: 4G; Processor: i7-8700 and above; Memory: 64 GB

Laser safety class

ClassⅡ(eye safety

Certification number(Laser certificate):LCS200726001DS

Equipment weight

920g

Overall dimension

290x125x70mm

Temperature / humidity

-10—40℃;10-90%

Power Supply

Input:100-240v,50/60Hz,0.9-0.45A;Output:24V,1.5A,36W(max)

Authentication

CE、IC、FCC、ROHS、ISO9001

Patent

ZL201220386542.3,ZL201220386546.1,ZL201520174157.6,ZL201721695684.7,ZL201520174106.3,ZL201420058854.0,ZL201721376035.0,ZL201330658475.6,ZL201130007136.2,ZL201130007145.1,ZL201130007141.3,ZL201720362488.1,

ZL201720349729.9,ZL201720362493.2,ZL201720369852.7,ZL201720369914.4,ZL201720369921.4

Warranty period

18 natural months
