HL-3DS+

The three-dimensional scanner HL-3DSV+ (multifunctional type) adopts imported lenses, imported industrial cameras, and a brand-new industrial design.

The photographic 3D scanner adopts a new coding calibration technology, which is the core mastery and application of 3D photogrammetry technology, which reduces physical distortion and improves the scanning accuracy of original 3D data. Adopt heterodyne multi-frequency phase shift grating technology to improve the quality of scanning point cloud. Synchronized with the German gom company, it truly has a blue light device scanning system, and at the same time the camera-type three-dimensional scanner scans the data point distance up to 0.01mm, which is suitable for fine workpiece scanning; adopts a new core design concept and uses carbon fiber materials to improve the stability of the product during work .

Product features

●13-step coding calibration technology

Eliminate lens distortion errors and improve scanning accuracy


   ●Portable design

     The hardware system is small in size, occupies a small area, no noise, easy to

isassemble and assemble, convenient to bring to the measurement site

●Heterodyne multi-frequency phase shift grating

Uniform fringe projection, point cloud data with high precision and no noise data

   ●Strong compatibility

     Compatible with the photography system to make the scanning speed faster and

higher precision, ±0.006mm/m

●Fast scanning speed and high efficiency

Several million data points can be obtained within ≤3-5 seconds,

high efficiency (the system can also be customized according to customer needs)

   ●Patented design (Certificate No. 2689311)

     A single machine can scan a workpiece of about 4m, and the data can be scanned i

n multiple modes without steps, deformations, stripes, etc., easy to adjust, and suitable for a variety of workpiece requirements


Technical advantages

industrial design

The hardware is small and uses less space; it is convenient to carry around, easy to disassemble and assemble; a variety of scanning modes can be selected at will

Industrial lens

Imported original lens, scanning noise rate is extremely low, million-level industrial lens, optical distortion is small

Multi-frequency phase shift grating

Synchronized foreign grating technology, heterodyne multi-frequency phase shift grating; uniform fringe projection, point cloud data with high precision and no noise data; micro-structured light projection adopts LED cold light source, and the light source life is more than 35000h

Calibration technique

Adopt 13-step coding calibration technology to eliminate lens distortion error and improve scanning accuracy

specification

Product numberHL-3DS (binocular))HL-3DS+ (four mesh)
Field of applicationPrecision molds, 3C products, electronic components, jewelry design, electronic connectors, etc. Reverse engineering, 3D inspection
scanning methodNon-contact 3D scanning (photographed 3D scanning)
Projection, grating technologyMicrostructured light projection, extrapolation multi-frequency phase shifting technique (optional: blue/white light)
Calibration techniqueRing code calibration (13 steps)
Single scan range (mm)Independent mode200×150400×300
100×75
Adjustment mode400×300200×150
200×15050×40
100×75
Single measurement accuracy (mm)±0.006
Single-sided scan time (S)<5,<3
Stitching methodFully automatic intelligent stitching, manual feature stitching
Scannable object range (mm)10~4000
Average sampling point distance (mm)0.01-0.47
Industrial 3D Photogrammetry (Accuracy)Support industrial 3D photogrammetric splicing engineering coordinate point file import (≤±0.04mm/4m)
industrial cameraResolution (pixels)1.13 million pixels (optional 2 million, 3 million or 5 million pixels)
Camera angle (degrees)18 degrees, 27 degrees, 32.5 degrees
Industrial lens (mm)18 degrees, 27 degrees, 32.5 degrees
Calibration unitMetal/glass/granite
Industrial consoleMobile tripod / professional work bench / heavy duty operating frame
Data output formatASC,STL,PLY, IGES
operating systemWindows xp/windows 7/windows 10 32 bit / 64 bit Chinese / English
Light source, energy (W)Standard 100 W Halogen LED, 50 W High Energy LED (White); High Energy Lamp (HPL) 250 W Halogen
Calibration boardSquare granite material calibration plate
Working temperature, power supply0~40℃、100~240V AC
Test ReportEquipment accuracy test report issued by the Institute of Metrology and Quality Inspection, calibration test report
Camera platform360 degree free adjustment platform
Camera platformSystem size (mm)360x150x125580x150x125
System weight (kg)2.83.3

video

Product accessories

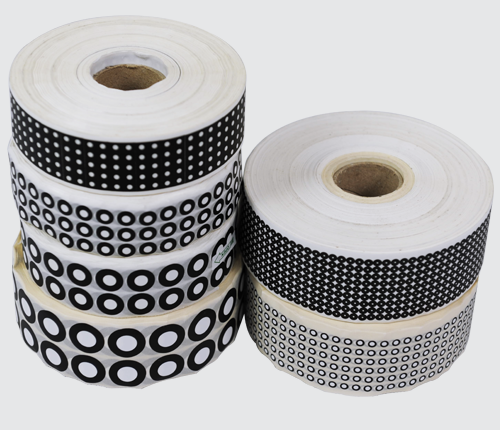

哑光标志点

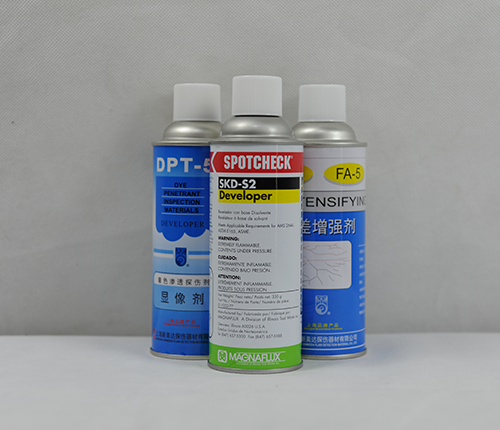

显像剂

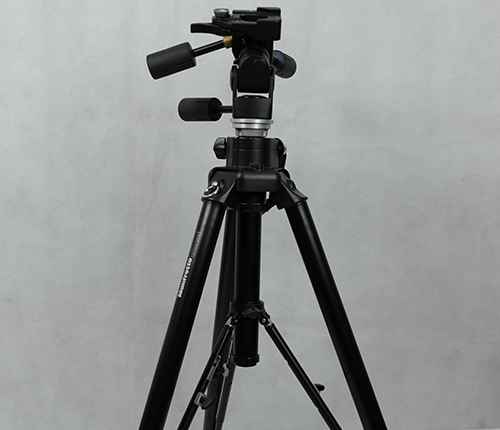

三脚架
