Automobile stampings are metal stampings that constitute automobile parts, and can directly become automobile parts. According to the types and characteristics of automotive stamping parts, different metal materials need to be selected for production, so as to ensure product quality, save materials and reduce the impact of process design. An automobile customer needs to scan the stamping parts of the automobile die comprehensively, obtain the data and form the effect picture, so as to facilitate the later production.
Practical problem
1. The stamping parts of scanned automobile parts provided by customers have complex structures, many surface details and holes, which bring certain difficulties to the scanning work as a whole.
2. The surface of the stamping part is reflective, and the customer requires that no developer should be sprayed. The scanning effect required is good, and the data obtained is of high precision, which can play a great role in the later application.
Scanning site drawing of automobile mould
Holon solutions
In the early stage, the stamping parts shall be pasted with corresponding number of mark points, and then the hand-held 3D scanner 751 with fine mode shall be used for comprehensive scanning of the sample. Switching to a single laser scanner can be applicable to scanning deep holes and dead corners, which is conducive to solving the difficulties caused by detailed features. First, scan the data of one side of the complete stamping part. Then scan the other side in reverse, and the data can be spliced automatically according to the mark points to improve the work efficiency.
High accuracy of scanned data. The hand-held scanner is flexible in operation, capable of multi-directional angle change scanning and fast and accurate capture. The scanned data is imported into the 3D software for data processing, and the data format required by the customer can be exported, so that the customer can skillfully use the software to make the design. Customers are very satisfied with our scanned data. The data accuracy is high and can be applied to the effect drawing of later design.

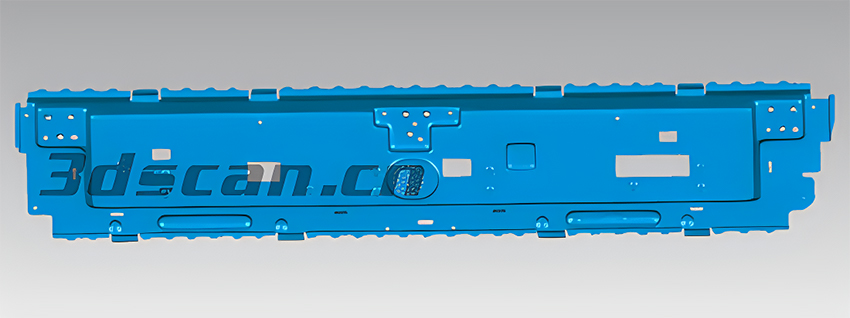

STL data diagram of automobile panel

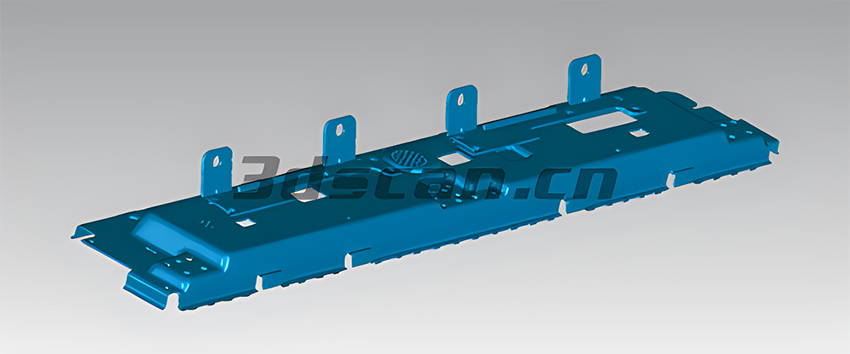

STL data diagram of automobile panel

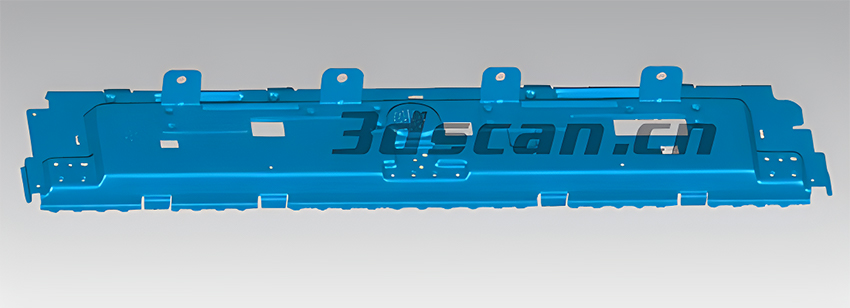

STL data diagram of automobile panel
