The automobile steering wheel is mainly used to control the direction. As a safety part, it plays a key role in the safety of vehicles and personnel. It is a very important component in the automobile. With the continuous development of the automobile, the steering wheel should also be improved to improve the safety performance of the automobile. The steering wheel is generally made of magnesium aluminum alloy, which is light in weight, easy to operate and has good performance indicators. Automobile manufacturers want to research and develop cars, so they use three-dimensional scanning technology to improve the steering wheel scanning.

Practical problem

    The steering wheel of the car contains a rotary table and an operating lever. On the whole, the shape is complex, irregular, and some protruding places. In this way, it is easy to form an included angle and increase the scanning difficulty.

    For customers who want to research and develop cars, the scanned data should have high precision, fast speed, simple operation and improve work efficiency.

Field photo of automobile steering wheel

Holon solutions

    After understanding the customer's needs and requirements, our company proposes the appropriate solution is to use the handheld 3D scanner HOLON 751.

    This device is hand-held, easy to use and flexible to operate scanning. In addition, the equipment has fast scanning speed, high precision and strong stability. It can also switch the single laser scanning mode. It is suitable for scanning deep holes and dead corners, and can solve the angle problems of customers. The scanned data can be compared with the original data to obtain the analysis report.

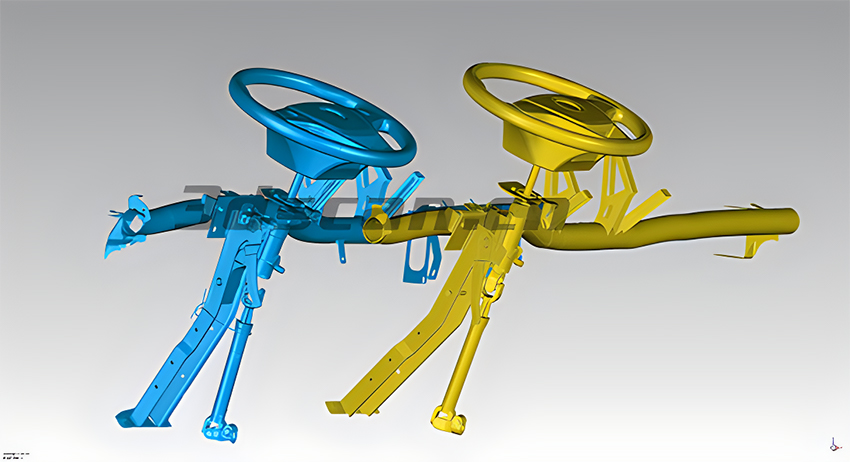

STL data diagram of automobile steering wheel

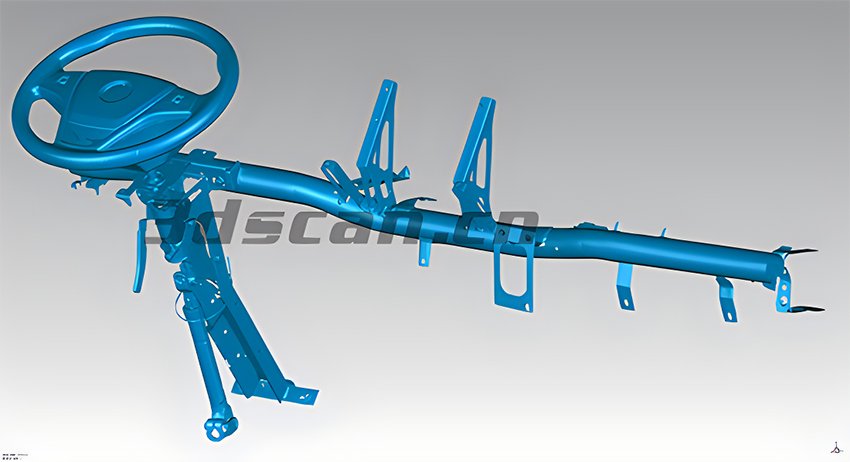

STL data diagram of automobile steering wheel
