BMW China open, also known as the front face of the car, is connected to the engine cover. Its main function is to ventilate and dissipate heat. Behind the China open, there are cooling water tanks and air conditioning condensers. These cooling elements can better dissipate heat through the air penetrated from the China open.
Practical problem
1. the curvature of the toilet surface of the BMW China Grid varies greatly, so it is impossible to accurately measure the three-dimensional data of the BMW China Grid by using the "three coordinates".
2. because the blade surface is an irregular curved surface, and the scanning accuracy of the three-dimensional scanner is very high.
BMW China open site scan
Holon solutions
According to the problems faced by the enterprise, Hualang 3D technical engineers put forward solutions: use the handheld 3D scanner hl-3dh-3m to quickly scan and obtain the 3D data of "BMW China Grid", use the reverse design software Geomagic studio to convert the point cloud data into triangular mesh surface data, and cooperate with the 3D detection software Geomagic qualify to quickly detect the differences between the produced "BMW China Grid" and the original data.

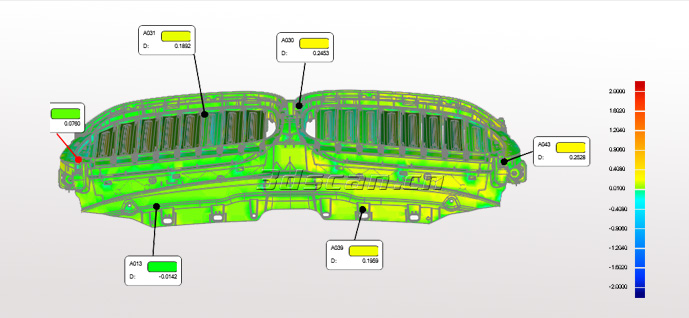

Comparison and analysis of BMW China open

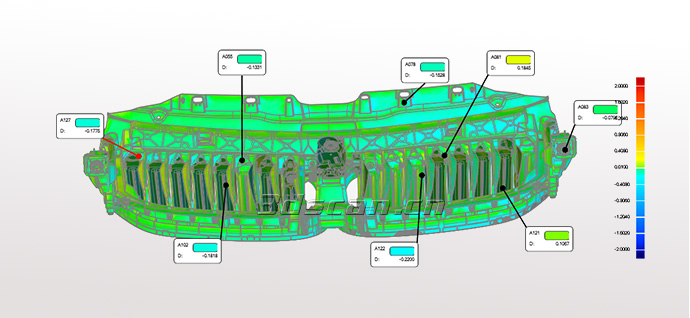

Comparison and analysis of BMW China open
