Nowadays, vehicles are used for transportation, which is convenient and time-saving and labor-saving. Automobiles have become a means of transportation widely used in various fields of social and economic life. With continuous progress, the requirements for all aspects of the automobile are becoming more and more strict. It is not just a tool that can travel, but also promotes the development of new automobile technology. It is not only the research and development and improvement of internal software systems, but also the evolution of automobile appearance. It is a development of automobile aesthetics that has continuously developed new styles throughout the period. It has become the way it is today with multiple styles and different specifications. A customer of an automobile company needs to scan and inspect the car roof to obtain data, which can be used for R&D design comparison and transformation.
Practical problems
1. The surfae of the car roof is complex and the body is large. Customers need to scan objects quickly, quickly output data, and require high accuracy.
2. Using the general traditional scanner, the scanning range is small, the time-consuming is slow, the data processing time is long, and the accuracy is not up to the requirement.

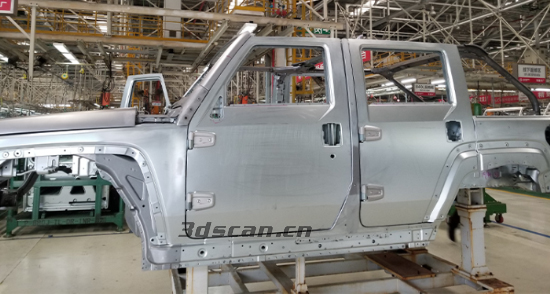

Off-road vehicle real shot map
Car roof scene scan map
Holon solutions
After understanding the customer’s requirements, Hualang 3D’s engineers decided to use the HL-scan 3D scanning system to display data in real time when showing the customer to scan the workpiece, and scan without processing the surface of the object. The scanning range is large and large workpieces can be scanned. Very suitable, short time. It can also be used with robotic arms for scanning, reducing manual intervention scanning, saving manpower and improving work efficiency. Moreover, the scanning accuracy is high, and the scanned data is processed to meet the customer's requirements, and the customer is very satisfied with it.

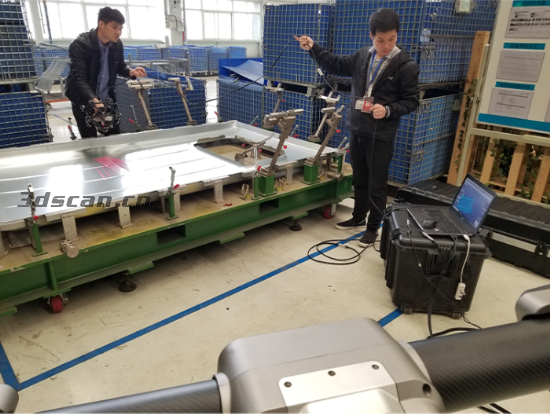

Car roof scanning scene map

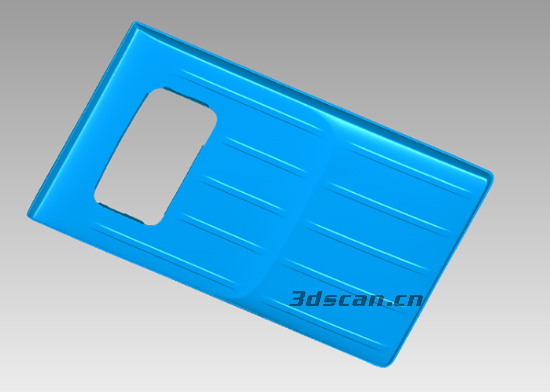

Roof STL data map

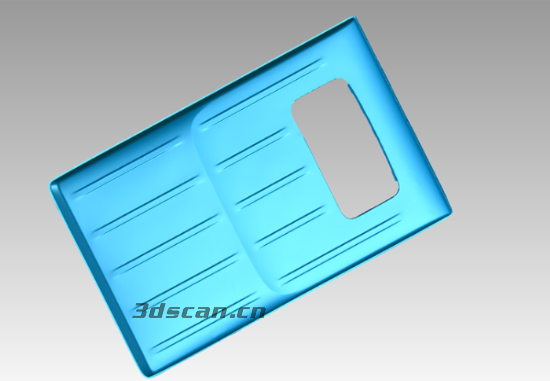

Roof STL data map

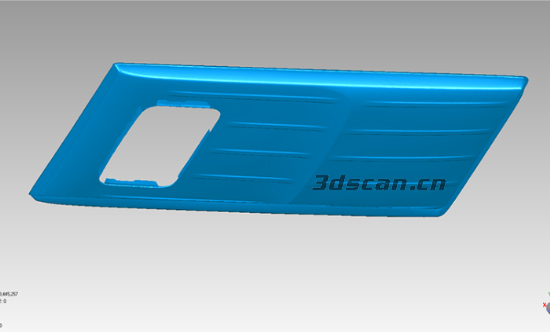

Roof STL data map
