Car 3D Scanning Modeling

2021-09-15 A+ A A-

Invisible car jacket is a new type of high-performance environmentally friendly film, which is widely used in the car beauty and maintenance industry. It is a common name for transparent paint protective film. It has super toughness, abrasion resistance does not change yellowing, easy to stick, anti-collision and scratching, after installation, the car paint can be isolated from the air, abrasion resistance is not yellowing, easy to stick, anti-collision and scratching, long-lasting protection Lacquered. Each car has a different shape, and it is necessary to customize a suitable invisible car suit according to the car model.

On-site entity map

Facing a problem

The customer is a manufacturer of invisible car covers. If you want to make a car suit for a suitable car model, you must first obtain a car model and make a car suit based on the model. The data model needs to be collected accurately to produce an invisible car suit that fits the car. Using a new handheld 3D scanner, the scanning accuracy can reach 0.01mm.

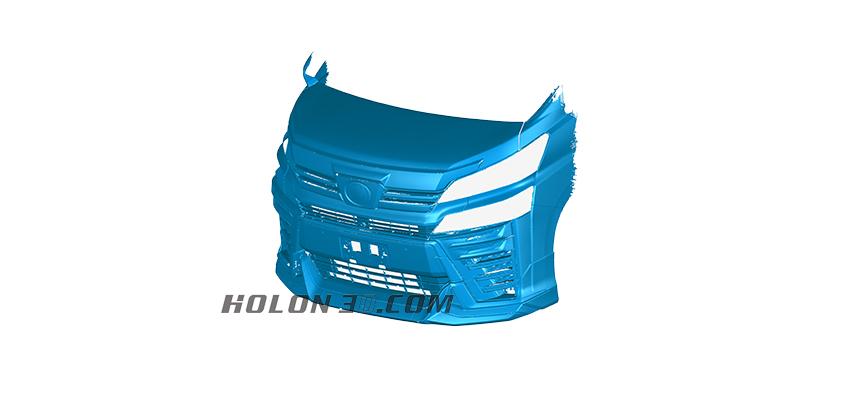

STL data graph

Solutions

The customer contacted us and wanted us to propose a suitable solution. Our engineers use the handheld three-dimensional scanner HOLON751 to scan the car to collect high-precision three-dimensional scan data. The data is imported into the three-dimensional software to make a three-dimensional model to present 3D three-dimensional graphics. The model data is expanded into a plan view, and the two-dimensional data is cut into invisible Jersey.

In response to the needs of customers, Hualang quickly proposes a suitable and accurate scanning plan based on its rich experience, and provides convenient assistance for customers in the early stage of data collection, model design, and later production and manufacturing.

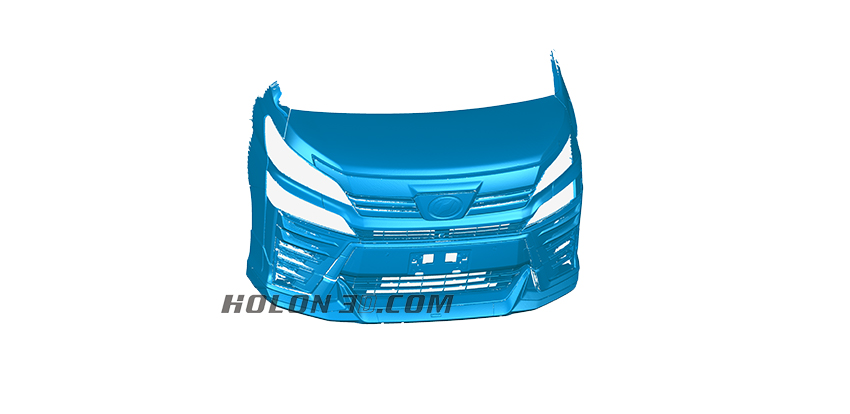

STL data graph
