Ships started from prehistoric wooden boats and experienced the era of canoes and plank boats. After the world's first steel boat came out in 1879, the era of steel boats began again. The client is a well-known domestic ship manufacturing company, and needs to perform reverse design and three-dimensional reconstruction of the scan of the abandoned yacht cabin, and finally use it to lay the foundation for the improvement and processing of the yacht.
Practical problems
Customer background: The customer is a military ship manufacturing enterprise with advanced ship manufacturing technology at home and abroad.
Scanning object: 3D scanning of yacht cabin
Measurement requirements: 3D reconstruction of yacht cabin scanning is required for later improvement and processing of yachts.
Recommended solution: Handheld 3D scanner HOLON 760 + 3D photogrammetric system (HL-3DP)
On-site shooting
Difficulties in measurement
The yacht cabin is huge (about 10 meters in length and 2.5 meters in height) and has many curved surfaces and is inconvenient to move. When measuring with a traditional three-dimensional scanner, the cumulative error will be too large. How to eliminate the impact of the error is the biggest problem. Customers require high overall accuracy, fast scanning speed and simple and convenient operation, which is conducive to the company's later use.
Yacht cabin measurement site
Holon solutions
According to customer needs and workpiece conditions, Hualang technical engineers quickly give a solution: use the handheld 3D scanner A15+ 3D photogrammetry system HL-3DP to quickly perform 3D scanning, which can obtain high-precision 3D data of the yacht cabin in a short time, and effectively solve the problem. Traditional measurement takes a long time and large accumulated error of measurement. Customers are very satisfied with the scanning effect and results of our equipment.

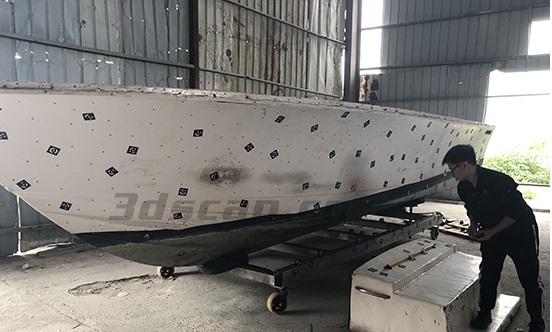

Yacht cabin scan scene

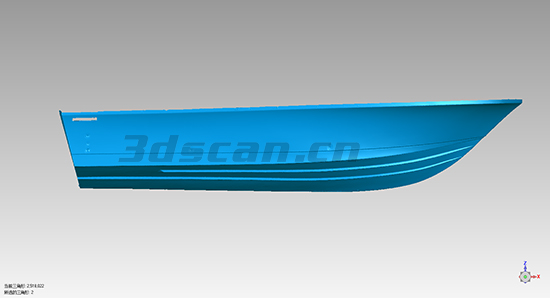

STL data chart of yacht cabin

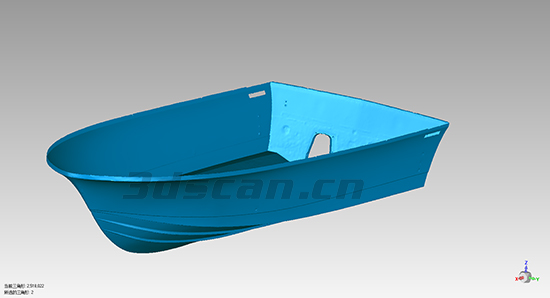

STL data chart of yacht cabin

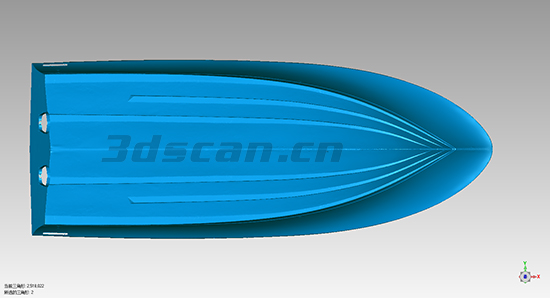

STL data chart of yacht cabin
STL data chart of yacht cabin
