The engine is the source of power for ships, and it can also act as a generator set by burning fuel to generate power, providing power for onboard equipment. With the rise of sea routes, ships have become increasingly important, playing a significant role in both passenger and cargo transportation.

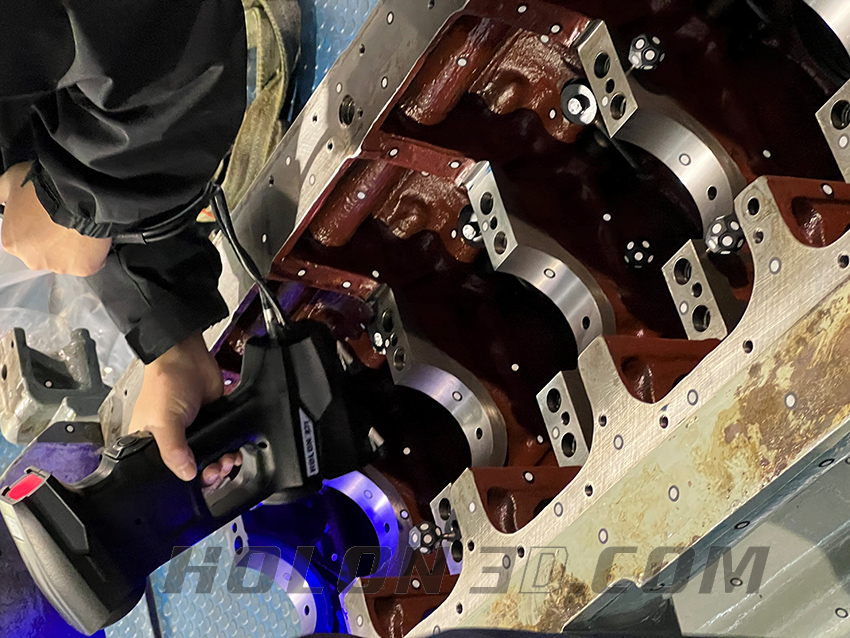

Ship engine scanning on-site image

Practical problems

Traditional measurement methods are insufficient to obtain data on ship engine casings, making it impossible to carry out secondary design and product quality inspection.
The complex shape, numerous concave convex surfaces, and numerous hole positions of ship engines make scanning work very difficult.

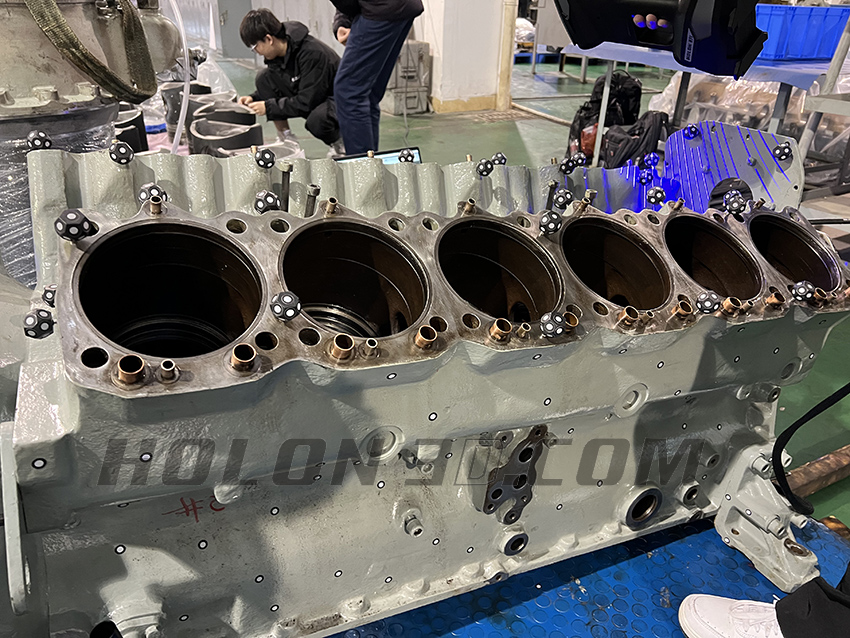

Ship engine scanning on-site image

Holon solutions

Equipment used: handheld 3D scanner model 49
Using 34 crossed blue laser lines+14 fine modes+1 deep hole mode, the scanning speed is 4200000 measurements per second, which can quickly complete the scanning work; With an accuracy of up to 0.02mm, it has high scanning accuracy and work efficiency. By comparing with the original data, obtain a simple and understandable 3D detection report.

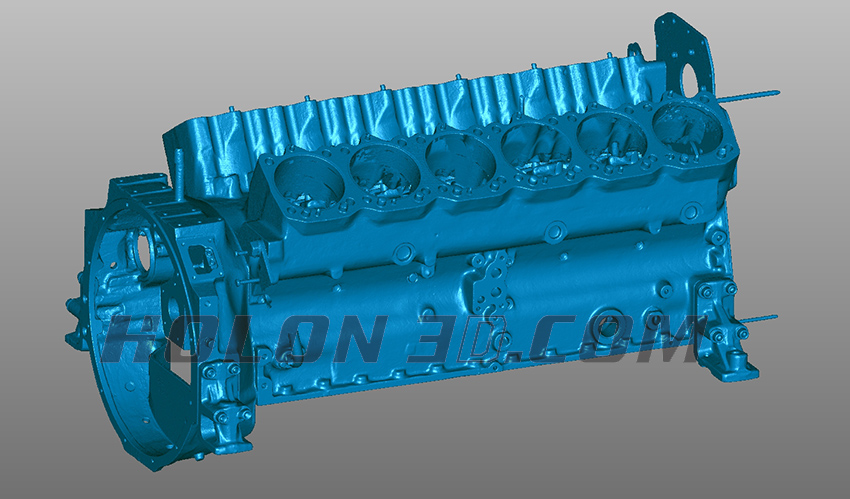

Ship engine STL data chart

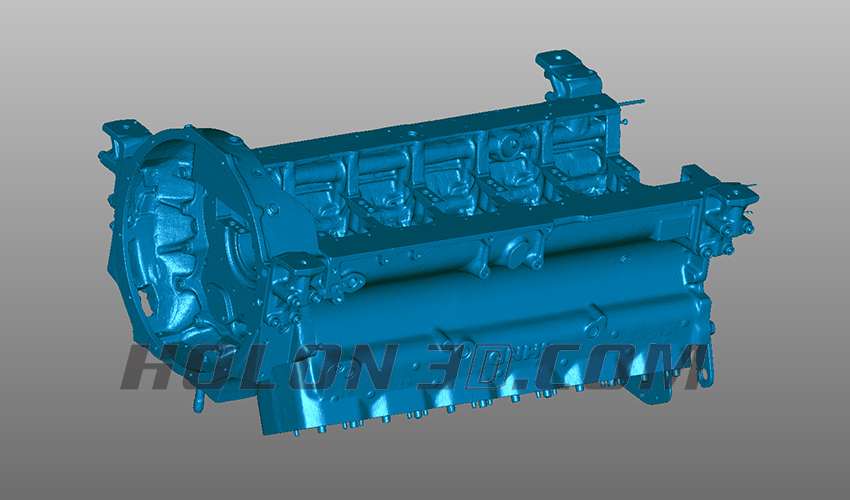

Ship engine STL data chart
