A well-known domestic automobile manufacturer needs to reverse design the automobile bumper, and uses the photographic three-dimensional scanner HL-3DS+ independently developed by Hualang 3D to scan the automobile bumper to obtain high-precision three-dimensional data and improve automobile insurance. The secondary development efficiency of the rod saves costs and shortens the development cycle of new products.
Practical problems
1. It is very cumbersome and time-consuming to simply use traditional methods (such as inspection tools, jigs, three coordinates, etc.) to measure the shape of the car bumper, and it is not easy to accurately and quickly measure and detect the shape of the car bumper.
1. It is very cumbersome and time-consuming to simply use traditional methods (such as inspection tools, jigs, three coordinates, etc.) to measure the shape of the car bumper, and it is not easy to accurately and quickly measure and detect the shape of the car bumper.
Holon solutions
The customer wants to make further improvements to the car bumpers produced to save production costs and increase the product qualification rate. Therefore, Hualang 3D engineers provide a professional solution: use the camera-based 3D scanner HL-3DS+ (quickly obtain high-precision 3D data of the car bumper) + reverse design software Geomagic Studio (convert the car bumper point cloud data into a triangle (Grid surface data) assisted the company in the secondary design of car bumpers.

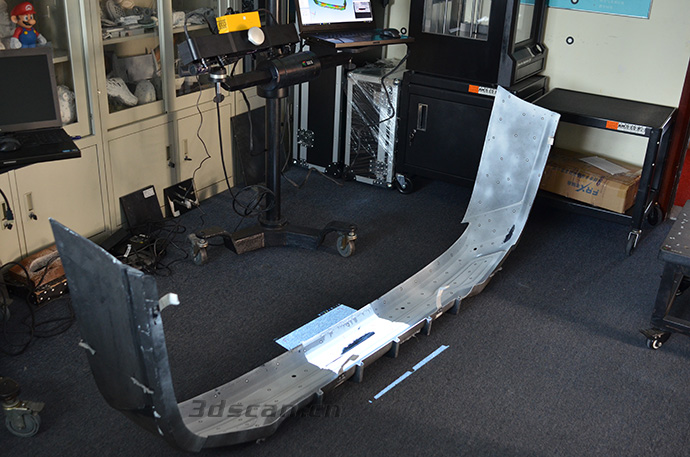

Car bumper scanning scene

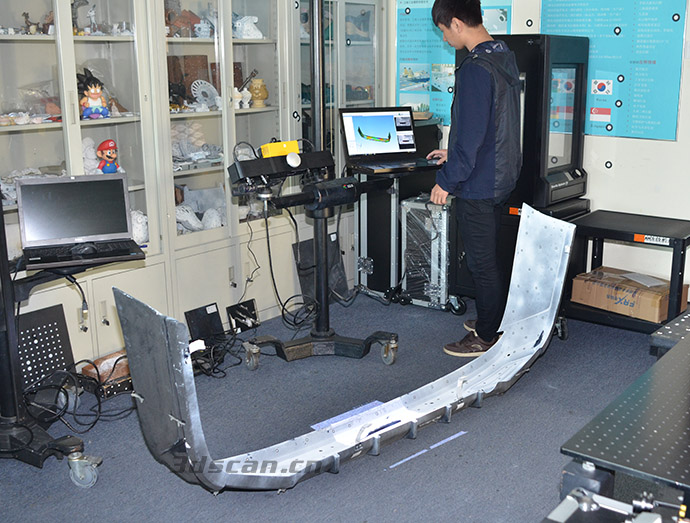

Scanning of car bumper scene

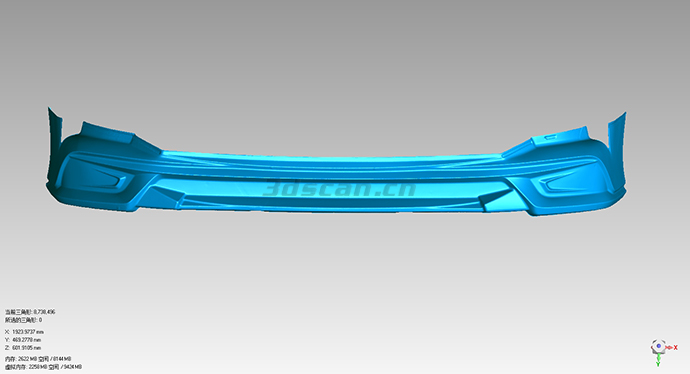

Car bumper STL data chart

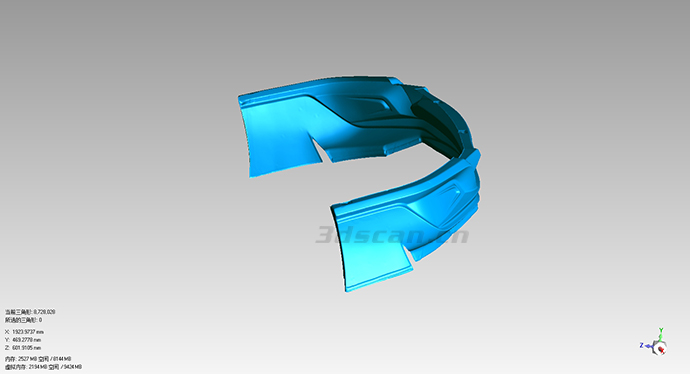

Car bumper STL data chart

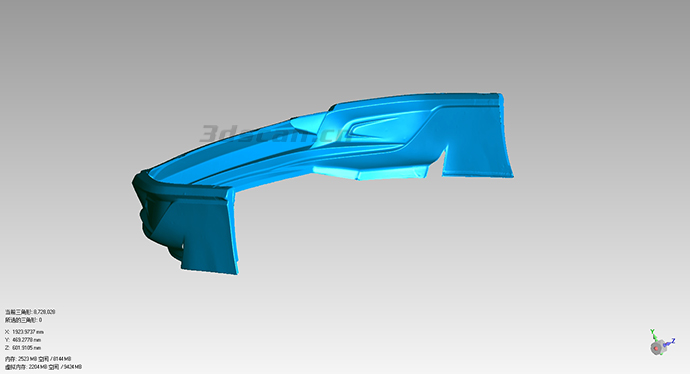

Car bumper STL data chart
