The hearth is a structural area of a blast furnace, generally referring to the furnace body between the centerline of the first row of tuyeres and the furnace bottom. During the smelting process of the blast furnace, molten iron flows into the front furnace through the hearth and bridge.

On site drawing of the inner wall of a large furnace hearth

Practical problems

   The inner wall of the furnace hearth is arc-shaped and has a large area. The on-site environment is relatively complex, and traditional measurement methods cannot perform complete scanning and splicing. The customer requires high precision in size detection of key parts in order to obtain accurate error values for key parts.

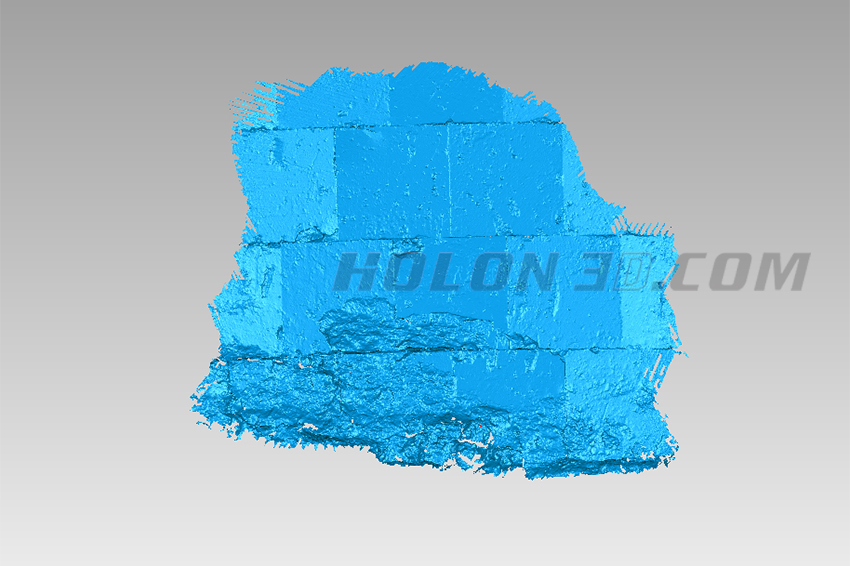

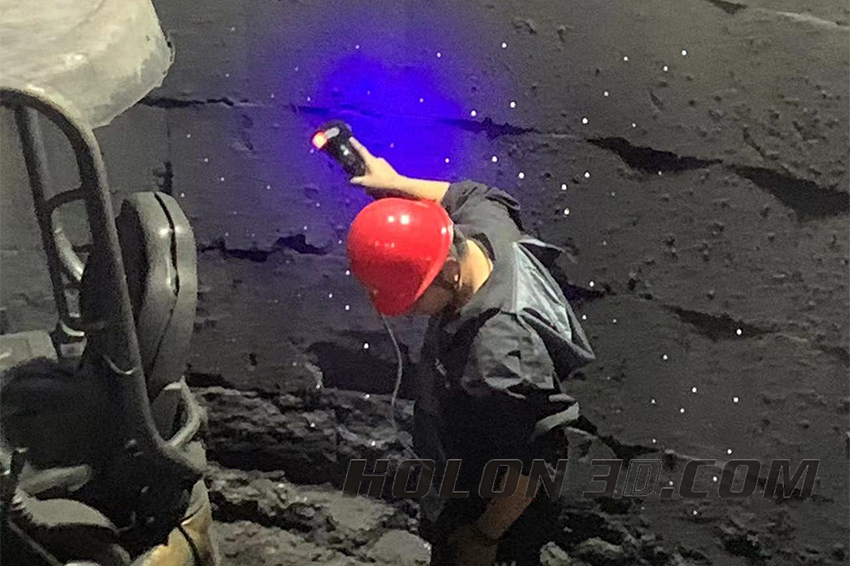

On site scanning image of the inner wall of a large furnace hearth

Holon solutions

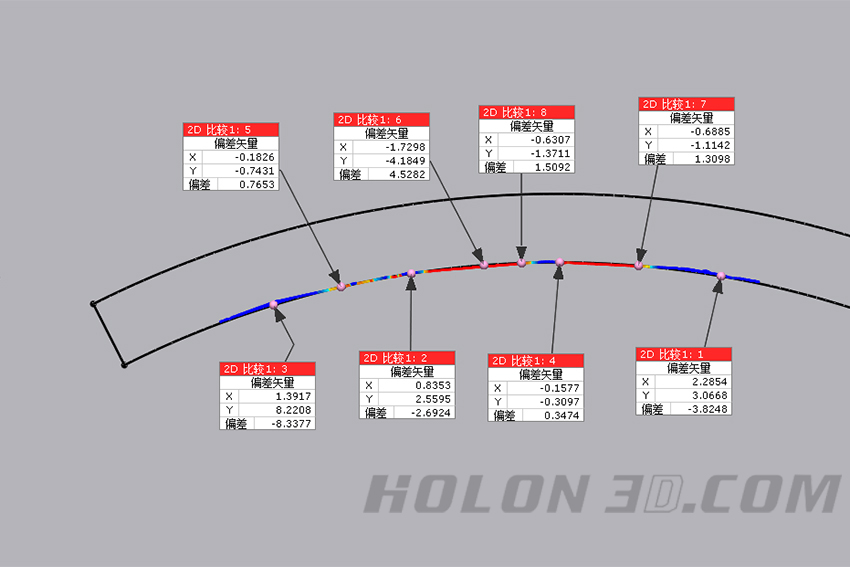

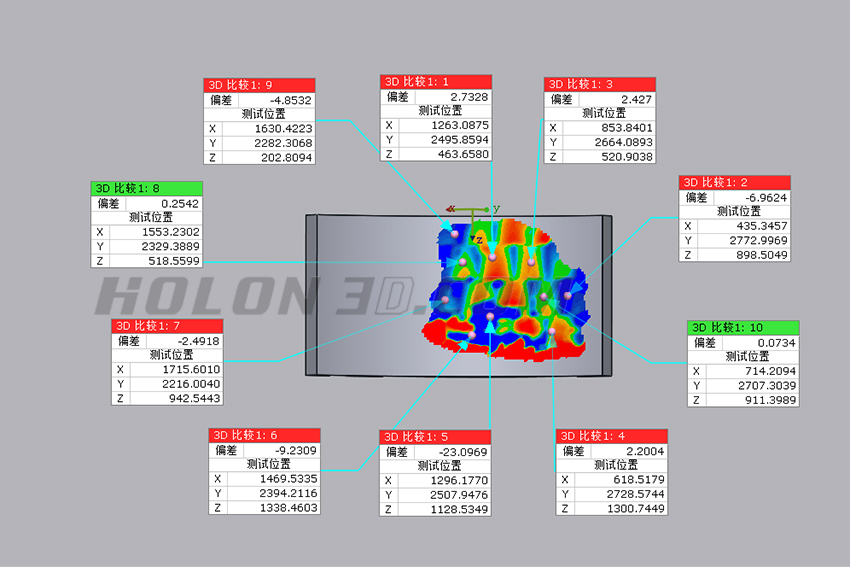

  According to the problem faced: using a handheld 3D scanner B71, in complex and ever-changing work sites, it is easy to take and measure, simple and convenient to use. The scanning speed of 30 laser scanning lines is fast, and the data accuracy is high. A wide range mode can be used to comprehensively scan the inner wall of the furnace to obtain high-precision scanning data. Import the obtained data into the 3D inspection software and compare it with the original digital analog, quickly generate inspection reports, and the running status is clear at a glance, successfully solving customer problems.
