Holon3d engineers use the precision three-dimensional scanner HL-3DM to perform three-dimensional scanning of the disc milling cutter, and establish accurate three-dimensional digital model files (CAD drawings) of the disc milling cutter for modification design and subsequent quality inspection and quality control.

Practical problems

1. The shape of the disc milling cutter is complex, with many holes, and the efficiency of using traditional measuring instruments is very low.

2. The disc milling cutter is not only small in size, but also has many dead angles. It is impossible to obtain accurate three-dimensional data with ordinary three-dimensional scanners.

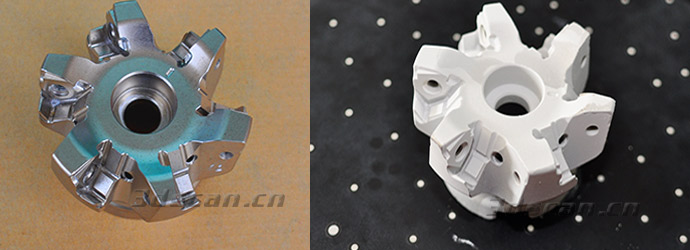

Physical Picture of Disc Milling Cutter

Holon solutions

Disk milling cutter is a kind of cutter used to mill the plane of workpiece in the machining process. If there is a large error in the position of the screw hole of the fixed blade, the workpiece may be scrapped directly. Hualang engineer proposed a solution, using the industrial 3D scanner hl-3dm (precision type), to collect the 3D data of the disk milling cutter, and then through the Geomagic Studio software for post-processing, to convert the point cloud data of the disk milling cutter into triangular mesh surface data. A high-precision 3D digital model of disc milling cutter is obtained.

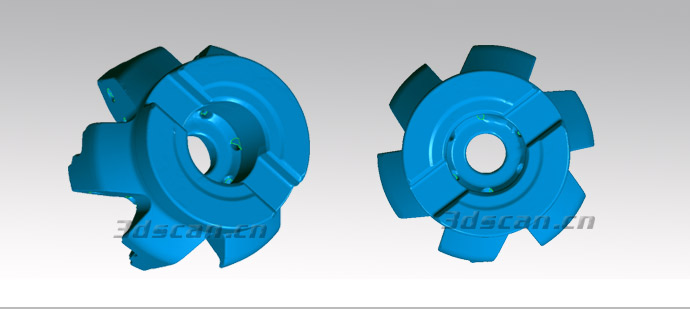

Disc milling cutter point cloud data

The processed data can also be imported into the inspection software to perform detailed analysis of object features, such as hole position, contour, curvature, etc., while also capturing and reflecting the shape and position deviation of the profile. The Geomagic Qualify inspection software can automatically align the coordinate system of the measurement data with the CAD data, so as to achieve rapid comparison inspection and quality control.

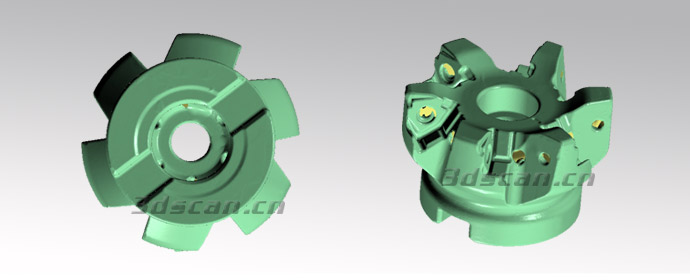

Disc milling cutter STL data
