Reverse Design of Geely Automobile Stamping Machine Tool

2021-05-19 A+ A A-

Geely Automobile's stamping machine tool axles and gears were damaged, resulting in work stoppage. As there were no drawings, it was impossible to repair or redo. A well-known automobile manufacturer in Xiangtan needs to scan the axles and gears of stamping machine tools in three dimensions, obtain high-precision three-dimensional data for reverse design of axles and gears, quickly repair the axles and gears of stamping machine tools, and reduce company losses.

Practical problems

The axles and gears of automotive stamping machine tools are bulky and bulky, with different surface contours and many dead angles of gears. Customers need to require very high accuracy on the appearance data of axles and gears to achieve a perfect repair effect. The traditional measurement methods are too inefficient and inefficient. If the accuracy is not high, it is not easy to accurately and quickly measure the overall structure of the axle and gear, and it will increase the difficulty of the later reverse design and modeling repair. Waste too much human and material resources.

Holon solutions

Because the overall structure of the axles and gears of automobile stamping machine tools is complex, and the volume is large and heavy, the axles and gears can be quickly repaired. Hualang 3D technical engineers put forward a solution: use the camera-based 3D scanner HL-3DS+ to quickly scan to obtain the 3D data of the axles and gears of the automobile stamping machine tool, which is not only fast, convenient to operate, short time-consuming, and high in data accuracy, so as to achieve customer scanning Demand, successfully solve the problems faced by customers.

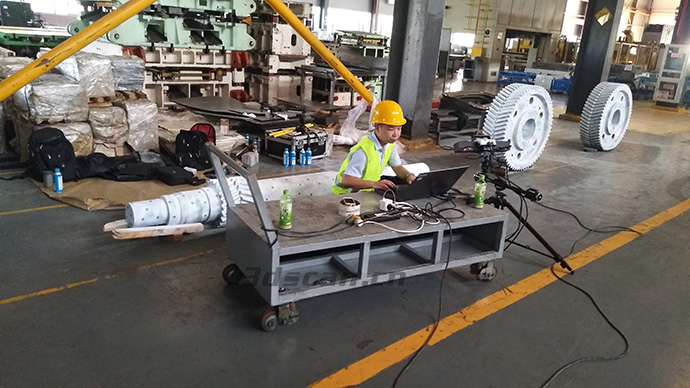

Geely Auto Stamping Machine Parts Scanning Site

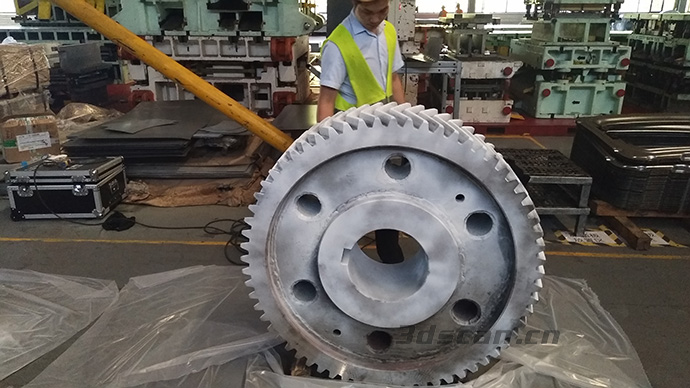

Geely auto stamping machine gear on-site map

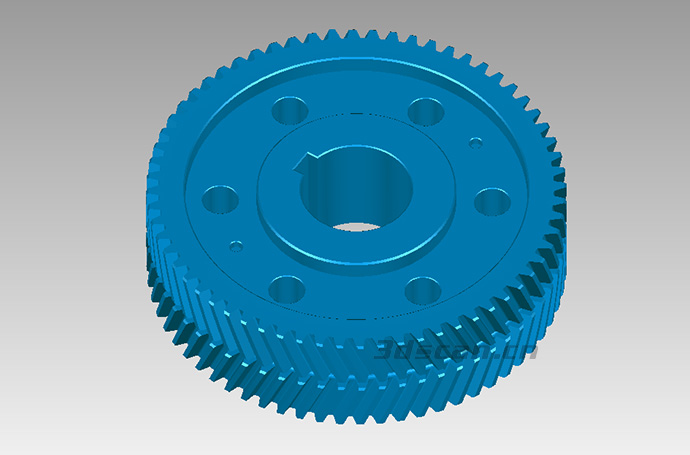

Geely Automobile Stamping Machine Gear STL Data Map

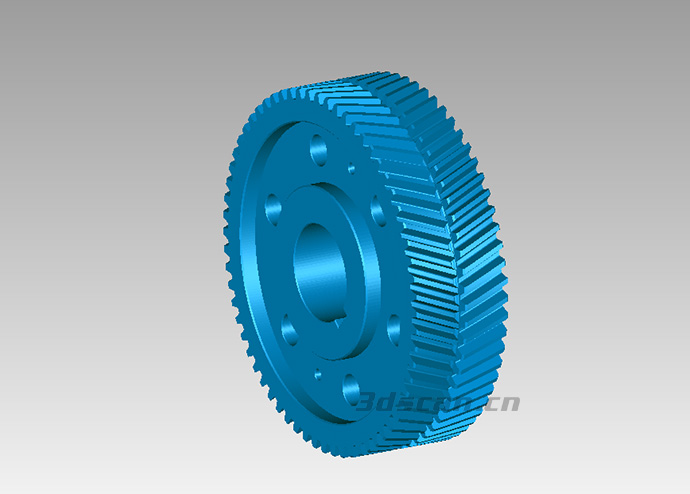

Geely Automobile Stamping Machine Gear STL Data Map

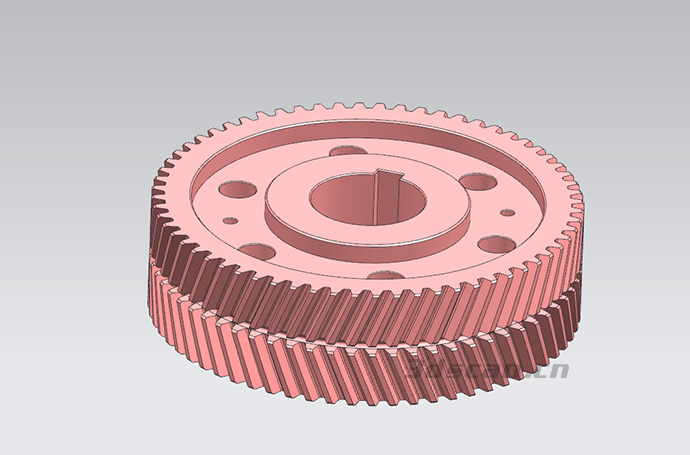

Geely Auto Stamping Machine Gear Book Mathematical Diagram

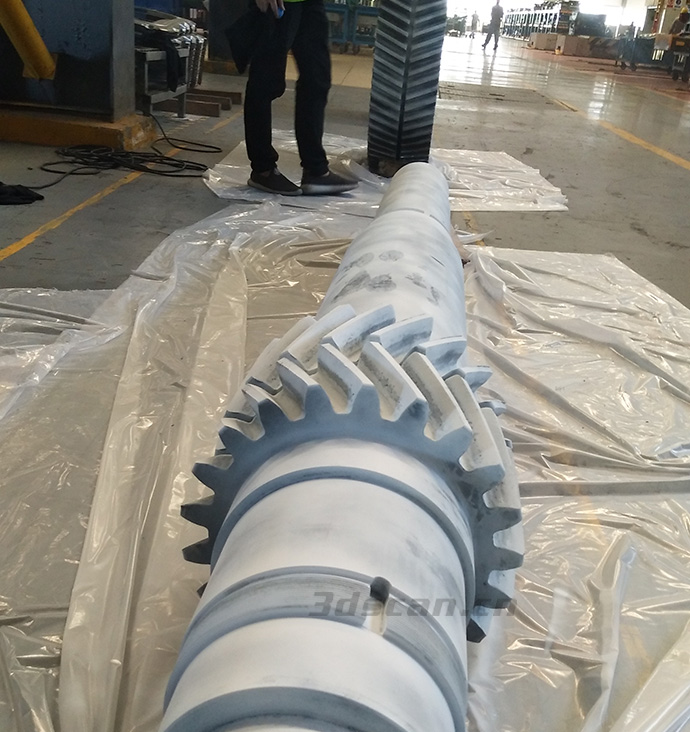

Geely Automobile Stamping Machine Wheel and Axle Site Picture

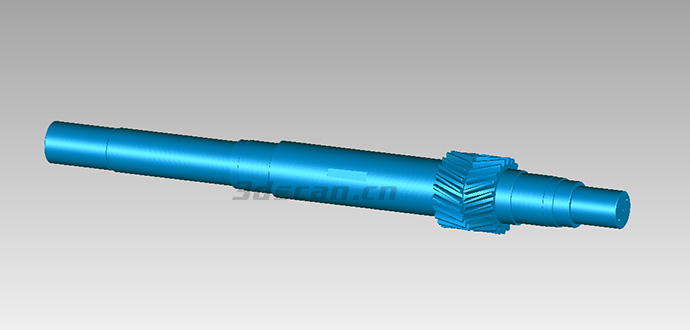

Geely Auto Stamping Machine Wheel and Axle STL Data Map

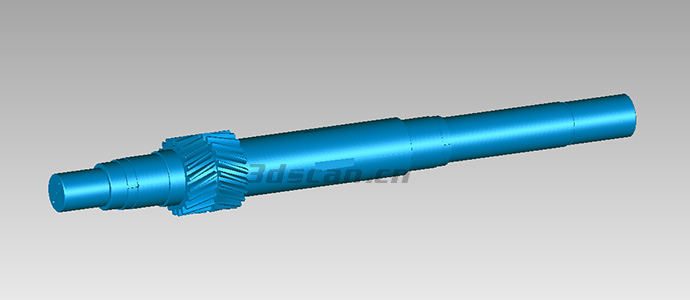

Geely Auto Stamping Machine Wheel and Axle STL Data Map

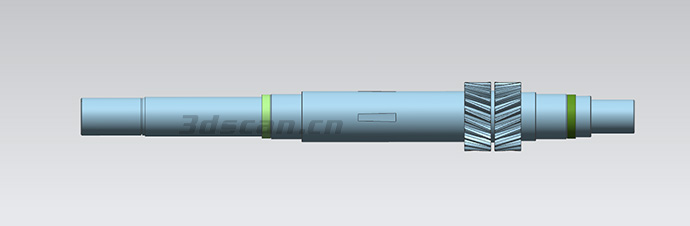

Digital model diagram of Geely auto stamping machine tool axle
