Aircraft is a heavier-than-air aircraft that generates lift from the fixed wings of the fuselage and flies in the atmosphere. Aircraft fuselage and parts will inevitably be damaged during use. It is difficult to provide timely spare parts like other mechanical parts, which is very important for maintenance. Through the three-dimensional scanning technology, the shape data of the aircraft and its parts can be obtained quickly and accurately, and analyzed and tested.
Practical problems
The customer mainly wants to keep the data of the entire aircraft for future reverse design, etc. If there is a problem with the aircraft, there is a data reference for comparison. Scanning accuracy should meet customer requirements, data splicing and fusion should be high, the overall scanning time should be fast, and work efficiency should be high, replacing the existing traditional measurement methods and introducing quick and simple methods.

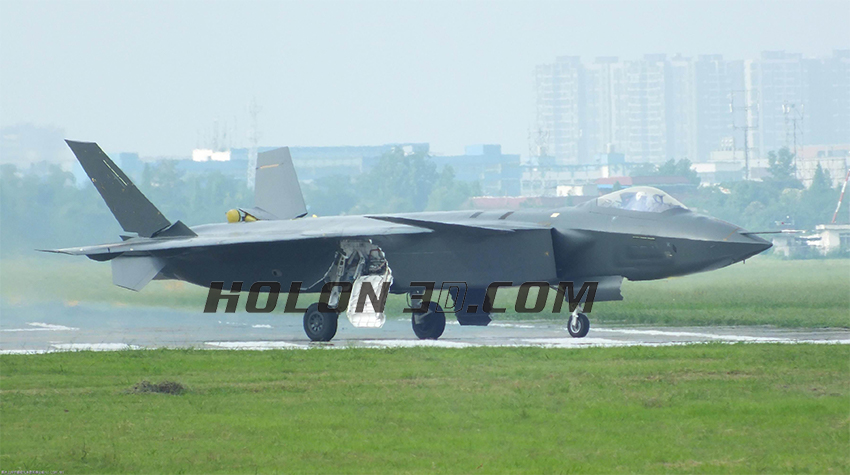

Aircraft physical map
Holon solutions
Use Hualang 3D handheld 3D scanner HOLON B71 to scan the aircraft to obtain high-precision 3D data with fast scanning speed. The handheld three-dimensional scanner HOLON B71 has three scanning modes, with deep hole scanning and fine scanning; scanning laser beams are many, the scanning speed is fast, and the work efficiency is improved; the data acquisition accuracy is high. The scanned data is imported into the post-processing optimization, and the data is post-tested and analyzed.

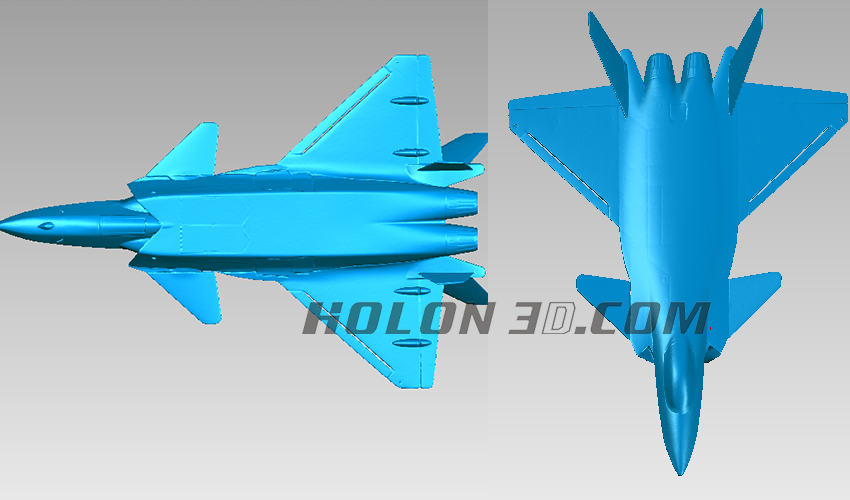

Aircraft scanning STL data map

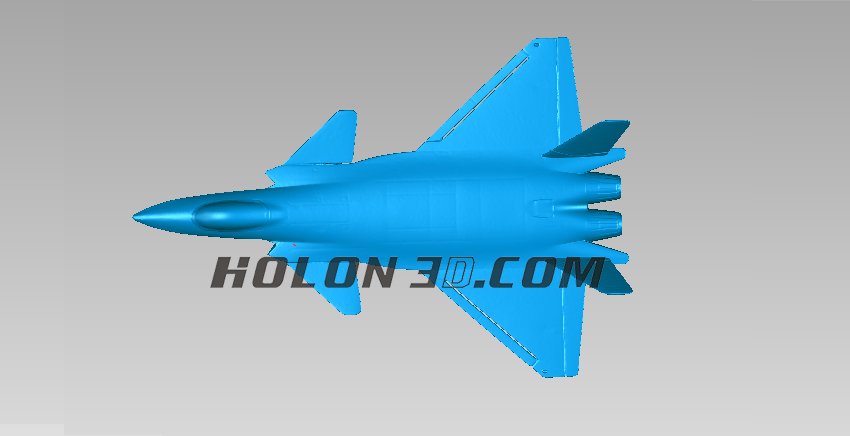

Aircraft scanning STL data map
