The position of the car seat in the car compartment should be reasonable and in the best position. The shape design must conform to the physiological functions of the human body. It must be beautiful under the premise of ensuring comfort. It must be safe and reliable, with sufficient strength, rigidity and durability, and a compact structure. And reduce the quality as much as possible to meet various adjustment mechanisms to ensure safety. Therefore, the design of the seat is an important part of the overall assembly of the vehicle.

Practical problems

The customer is an automobile manufacturer and needs to test the produced car seats, compare with the design drawings, check the gaps, and avoid hole position problems in the vehicle installation and bring a bad experience to the customer.

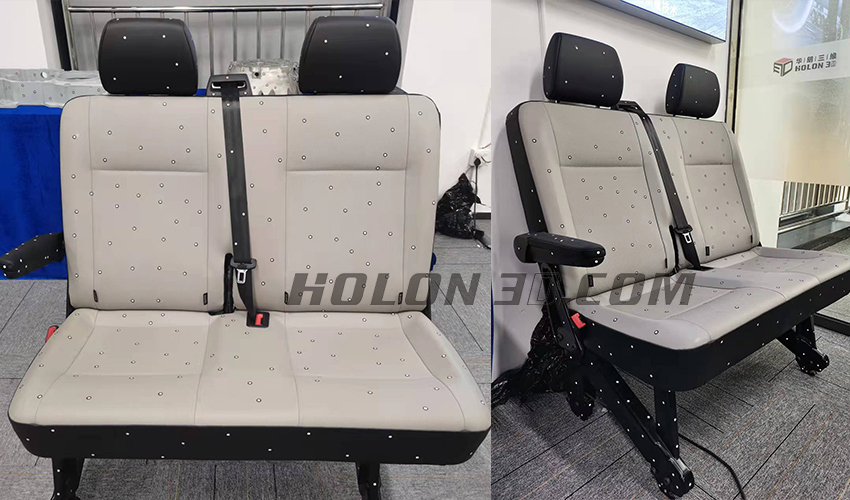

Site scan of car seat

Holon  solutions

Based on years of experience in scanning and testing in the automotive industry, Hualang 3D engineers use the high-precision, high-efficiency handheld 3D scanner HOLON B71 to scan the car seat to obtain accurate 3D data.

The 3D data can be imported into the 3D inspection software, which can be compared and analyzed with the original digital model, and the easy-to-understand inspection report can be obtained. Knowing the differences in product production, it provides reference solutions for future design modifications and helps customers.

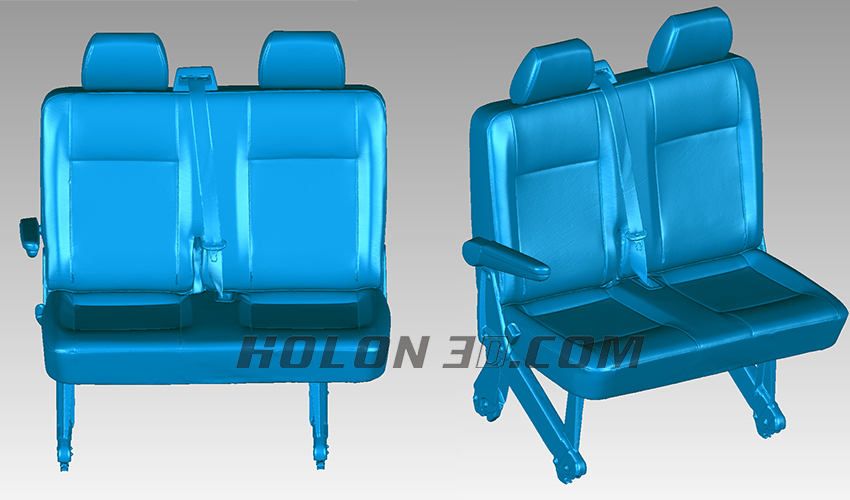

STL data map of car seat scan

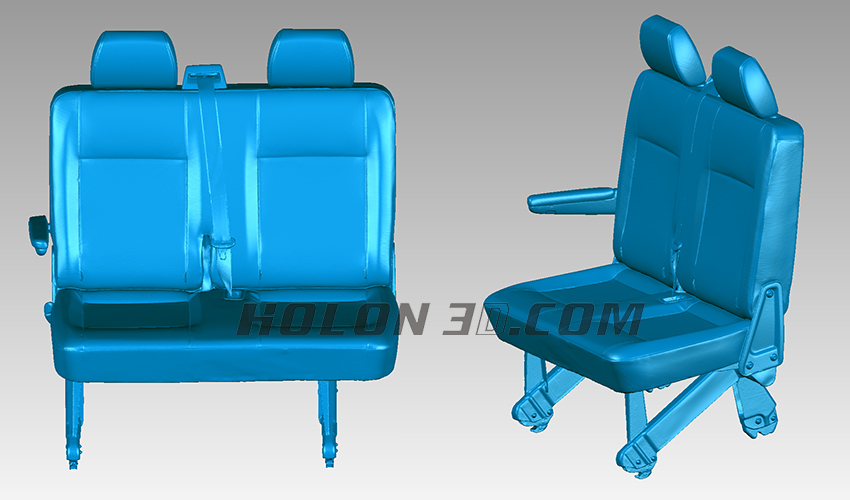

STL data map of car seat scan
