The customer is a well-known automobile production group at home and abroad. In order to meet the market demand and improve the competitiveness of the enterprise, the customer decided to abandon the traditional detection methods and introduce new measurement methods. The customer needs to conduct quality inspections on the battery modules of new energy vehicles to quickly obtain accurate and detailed information. Three-dimensional inspection results, to detect whether the product is qualified, improve product quality and product development rate.
Practical problems
1. The new energy vehicle battery module has a large body, irregular surface, different grooves and many holes. Customers need to accurately measure the hole positions of the workpiece, which brings great difficulty to the traditional measurement work.
2. The use of traditional measurement methods is very cumbersome and time-consuming, and cannot meet customer needs. Customers require fast measurement speed, high accuracy, and can not do any processing on the workpiece, and realize automatic three-dimensional measurement, which makes many colleagues stop watching.

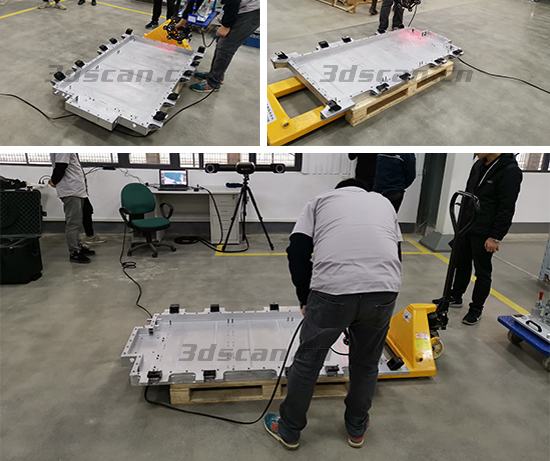

New energy vehicle battery module scanning site
Holon solutions

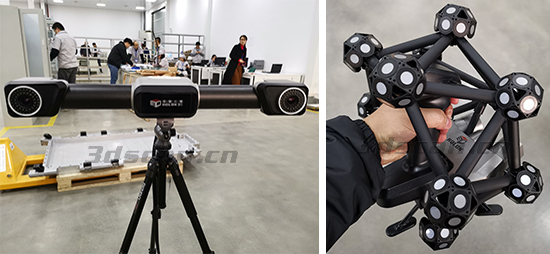

Recommended equipment: HL-Scan automated three-dimensional measurement system
According to customer needs, our Hualang 3D technical engineers have formulated effective solutions, using Hualang 3D HL-Scan 3D online inspection system combined with the latest 3D scanning technology for effective data collection of new energy vehicle battery modules. Powder spraying treatment, convenient operation, and automatic detection with robot manipulator arm.
Cooperate with robot scanning to reduce manual intervention, faster scanning speed, higher accuracy, and stronger stability, thus shortening product development design and processing cycle and reducing costs, effectively solving the problems faced by customers, customers are very satisfied and cooperate with our company , Procurement of our equipment.

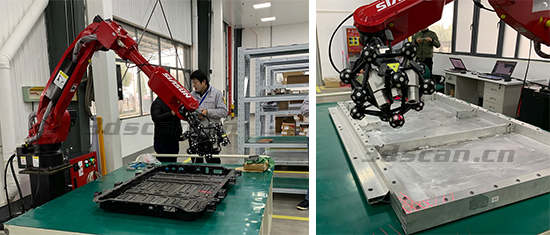

Combined with robot manipulator to measure the scene

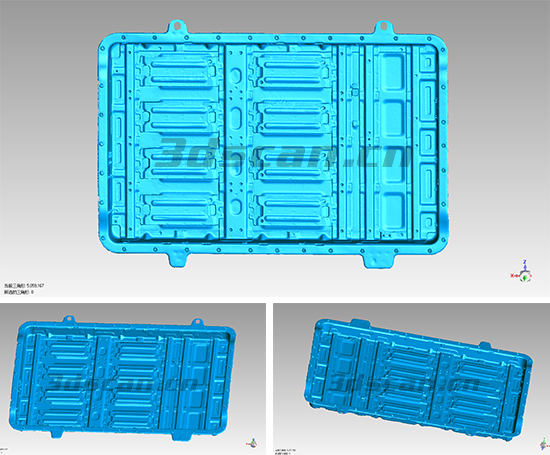

STL data chart of new energy vehicle battery module

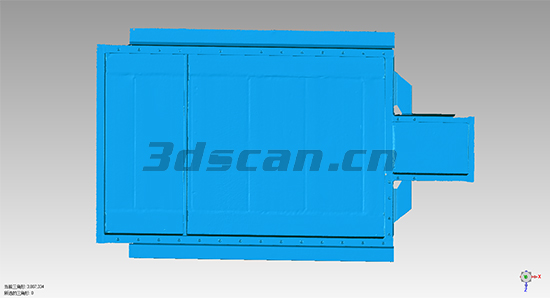

STL data chart of new energy vehicle battery module

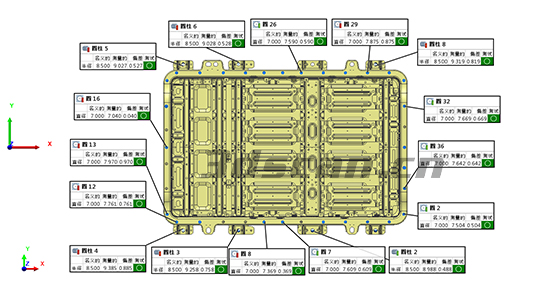

New energy vehicle battery module testing comparison chart
