"Our company relies on technical strength to nurture original products that are required by the times and the market, combined with continuous practice and innovative technical solutions to lead the market." The customer is a well-known "wind power group" at home and abroad, and it can be said that it is admired to seek technical solutions, using the new 3D scanning technology to obtain the 3D data of the new energy steam turbine cabin.

Practical problems

3D digitization is applicable to a variety of fields and is an important auxiliary tool for corporate design and manufacturing departments to improve development and manufacturing capabilities. In the three-dimensional scanning, due to the huge size of the steam turbine cabin of the object under test, the traditional scanning method is used for scanning, which is not only inefficient, but also has a small amount of scanned data. High demands.

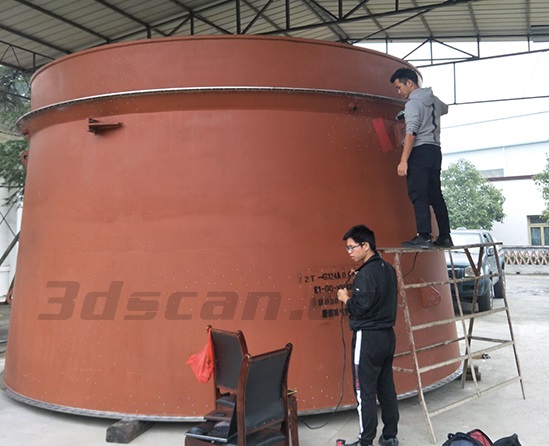

Site map of steam turbine nacelle

The handheld 3D scanner is currently the most popular scanner model in the fields of industrial 3D inspection and reverse design. Its advantages are the flexibility, portability, and high accuracy of scanning.
Especially when facing large objects to be measured, traditional camera scanners are slow and often require powder spraying to be time-consuming and laborious, while handheld 3D scanners can quickly scan large workpieces by virtue of their flexibility. The scanning speed is fast and the operation is simple. And it is more efficient.

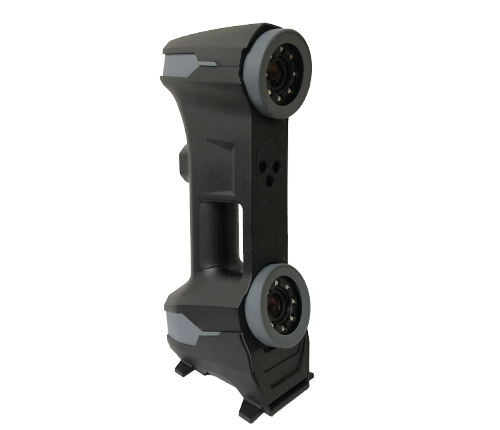

Recommended equipment: Handheld 3D scanner HOLON760

Holon solutions

The super-large steam turbine nacelle of the measured object has a circumference of about 20 meters and a height of 8 meters. It is scanned by HOLON760, which can obtain high-precision three-dimensional data in a short time (about 3h). The customer adopts the transmission measurement The method can be completed in about 3 days. The error rate of manual measurement is extremely high and time-consuming and laborious, which is not conducive to the development of later products and the improvement of the overall production efficiency of the product.
The customer said: With such a flexible operation method, the speed at which data can be obtained in such a short period of time is beyond the reach of the manual traditional methods used before.

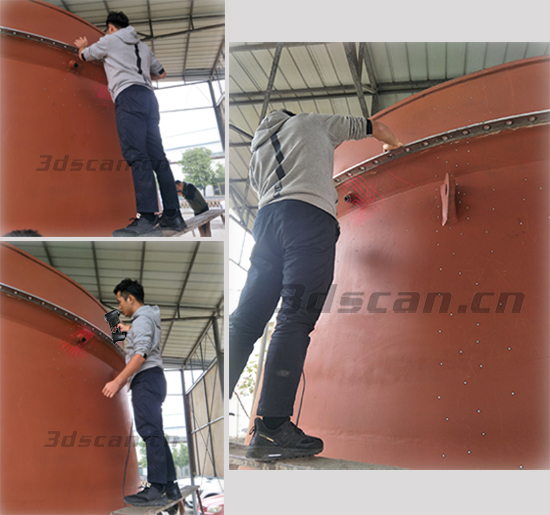

Scanning scene of steam turbine nacelle

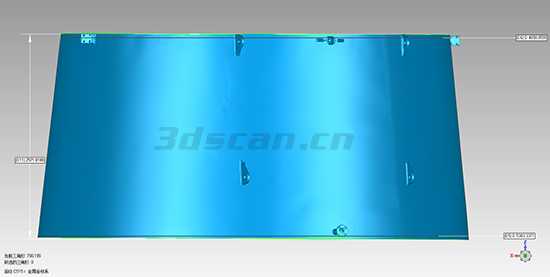

STL data of steam turbine nacelle

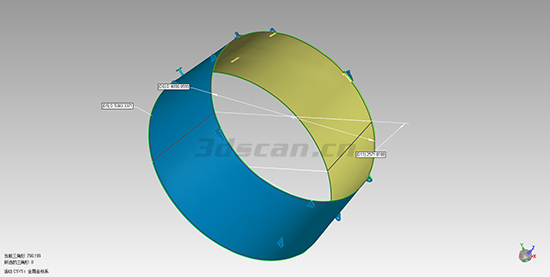

STL data of steam turbine nacelle

STL data of steam turbine nacelle

Extended application
1. The tested sample can be large or small
Based on the unique portability and flexibility of the handheld laser 3D scanner HOLON760, this device has a wide range of operability.
2. Diversified application areas
Use HOLON760, from product conceptual design, reverse engineering, to rapid prototyping design and manufacturing, component inspection and repair, 3D digital archiving and other needs can be met. Efficient and professional is the final evaluation of the handheld 3D scanner HOLON760 this time.
