Reverse design of aircraft tail

2021-08-03 A+ A A-

The tail wing is a device installed on the tail of the aircraft to enhance the stability of flight. The tail wing can be used to control the pitch, yaw and tilt of the aircraft to change its flight attitude. The tail is an important part of the flight control system. It is inevitable that damage will occur during use. Therefore, it is necessary to quickly obtain the appearance data of the aircraft tail to provide accurate data solutions for subsequent maintenance, repair and transformation.

Practical problems

The customer mainly wants to obtain the data of the aircraft tail, and later reverse modeling. Because the traditional scanning method collects the large objects of the aircraft tail, it is impossible to obtain accurate data for the places with large curved surfaces. Therefore, the customer needs to find other suitable technologies to obtain it. Data to solve the problems that exist in the work.

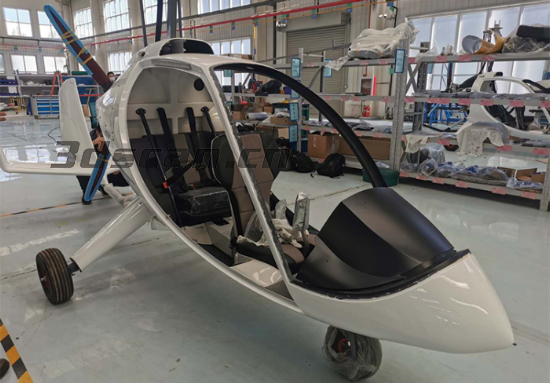

Real shots of the aircraft scene

Holon solutions

The customer is looking for Hualang 3D, hoping to use a new type of 3D scanner equipment, fast scanning, can obtain accurate data storage and reverse modeling. In the later stage, if you want to maintain and produce, you can use the data to improve work efficiency.

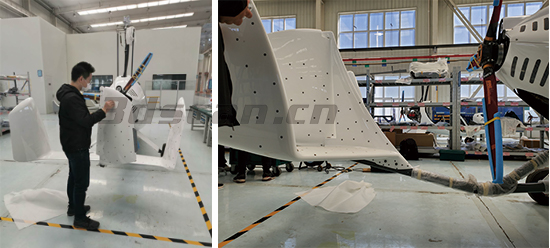

Marking points on the aircraft site

Use our handheld 3D scanner HOLON751 to perform a comprehensive and rapid scan of the aircraft tail, the whole scan only takes 10 minutes. The scanning speed is fast, the accuracy is high, the stability is strong, the operation is convenient, and the scanning is flexible.

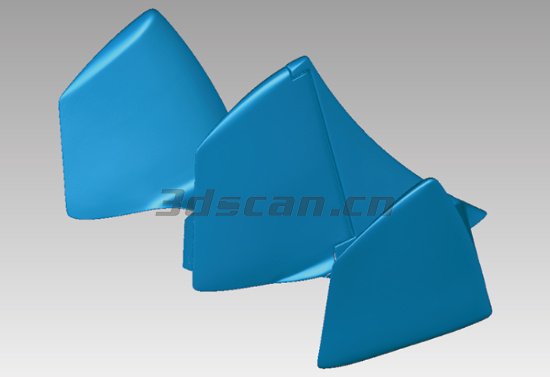

STL data map of aircraft tail

Import the scanned data into the post-processing software, and reverse process the data to obtain what customers need, which greatly improves work efficiency, shortens the time required for work before comparing, and provides customers with high-precision data and data. The model solves the difficulty of data acquisition in the work and the available reference data for later maintenance and transformation, and speeds up the progress of the work.

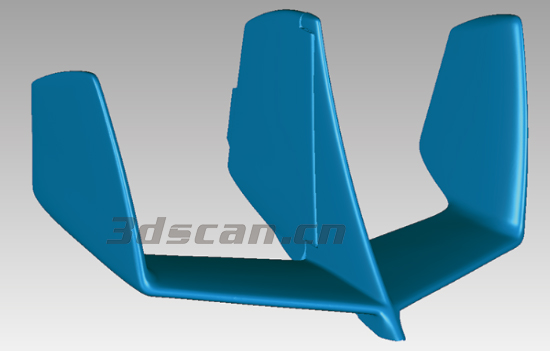

STL data map of aircraft tail

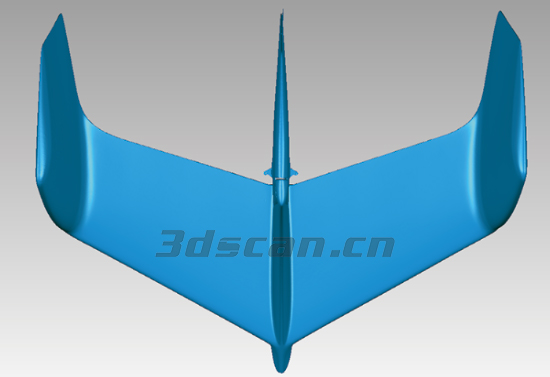

STL data map of aircraft tail
