Nowadays, electronic products are used more and more widely. Circuit boards are the basic electronic components. The rapid development of the information and electronics industry provides a good market environment for the rapid development of the circuit board industry. The continuous increase in the output of electronic products contributes to the rapid development of the circuit board industry. Growth provides a strong impetus, and the market's supporting demand has grown strongly, and the industry prospects are promising. At the same time, the production capacity and technical level requirements of circuit board products have also increased. According to the application field, in order to more effectively save volume and achieve a certain degree of accuracy, the product needs to be better applied to different electronic products. Perform circuit board inspection. customer found Holon 3D to perform 3D scanning inspection on the circuit board and obtain data to achieve a certain accuracy.

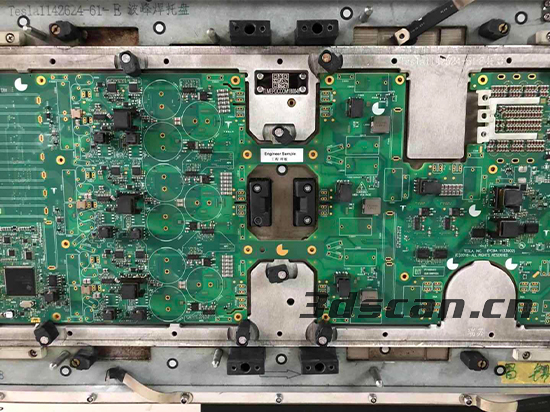

Circuit board scanning physical map
Practical problems
The circuit board is a precision workpiece. The external part is composed of various functional parts. It has a complicated design, many holes and different sizes, small surface curves, full of many small components, small component spacing, and connections between wires. Using ordinary 3D scanners to measure, it is impossible to capture such a small and complex surface, it is difficult to obtain high-precision data, and can not meet the measurement results required by customers.

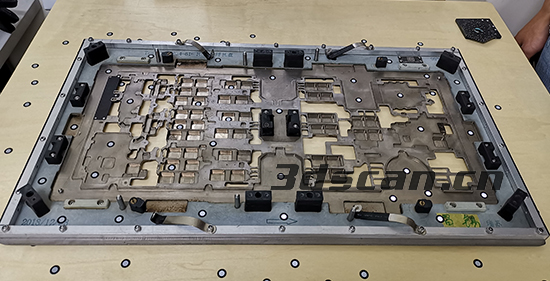

Circuit board scanning physical map

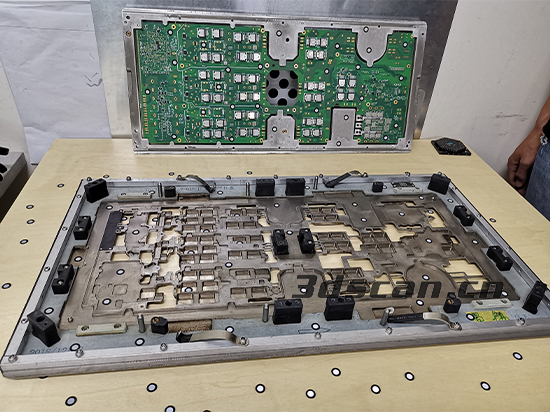

Circuit board scanning physical map
Holon solutions
For some complex problems faced by the circuit board, Hualang 3D engineers use the handheld 3D scanner HOLON760 for inspection and scanning. The scanner is flexible and convenient in the use process, light weight, time-saving and labor-saving, and uses 14+1 red laser lines to capture the uneven surface very well, scanning from different angles, fast, real-time display, importing three-dimensional inspection software for analysis, Fast timeliness, fast and simple acquisition of high-precision three-dimensional data scanned by the circuit board, you can get an intuitive three-dimensional inspection data map.

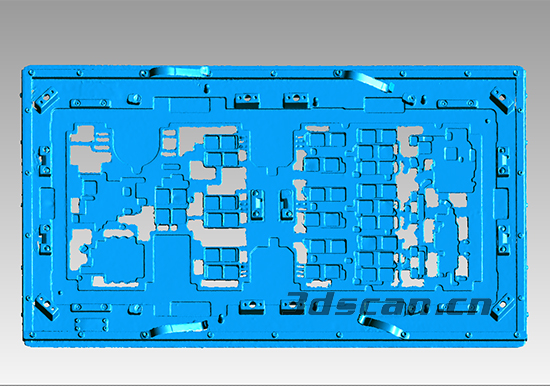

Circuit board scan data graph

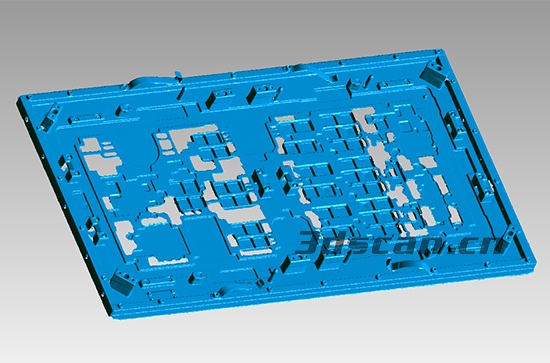

Circuit board scan data graph

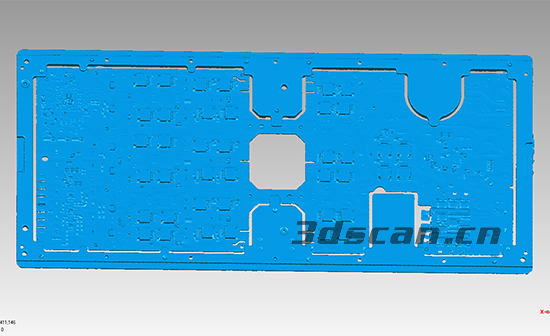

Circuit board scan data graph
