Cranes are an indispensable part of modern production. Some cranes can also carry out some special technological operations in the production process to achieve mechanization and automation in the production process. The main function is to complete the displacement of the weight. It can reduce labor intensity and improve labor productivity.
Under long-term high-pressure operation, the mechanical joints of the crane are prone to wear and tear, and there are certain potential safety hazards in subsequent use. In order to achieve high-precision detection of the crane arm parts, the engineer decided to use the Hualang handheld 3D scanner to carry out 3D detection of the key parts of the crane arm.

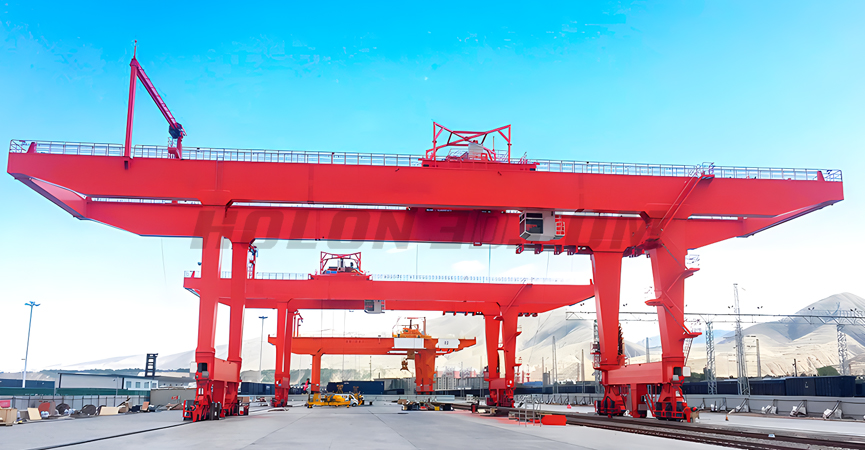

Three-dimensional scanning physical drawing of crane
面临问题|Practical problems
The lifting machinery is bulky and inconvenient to move. It is required to achieve the purpose of rapid sampling inspection at the scanning speed.
The customer requires that the dimension detection accuracy of key parts is high, so as to obtain the accurate error value of key parts and ensure the increased safety performance and service life in the later use.

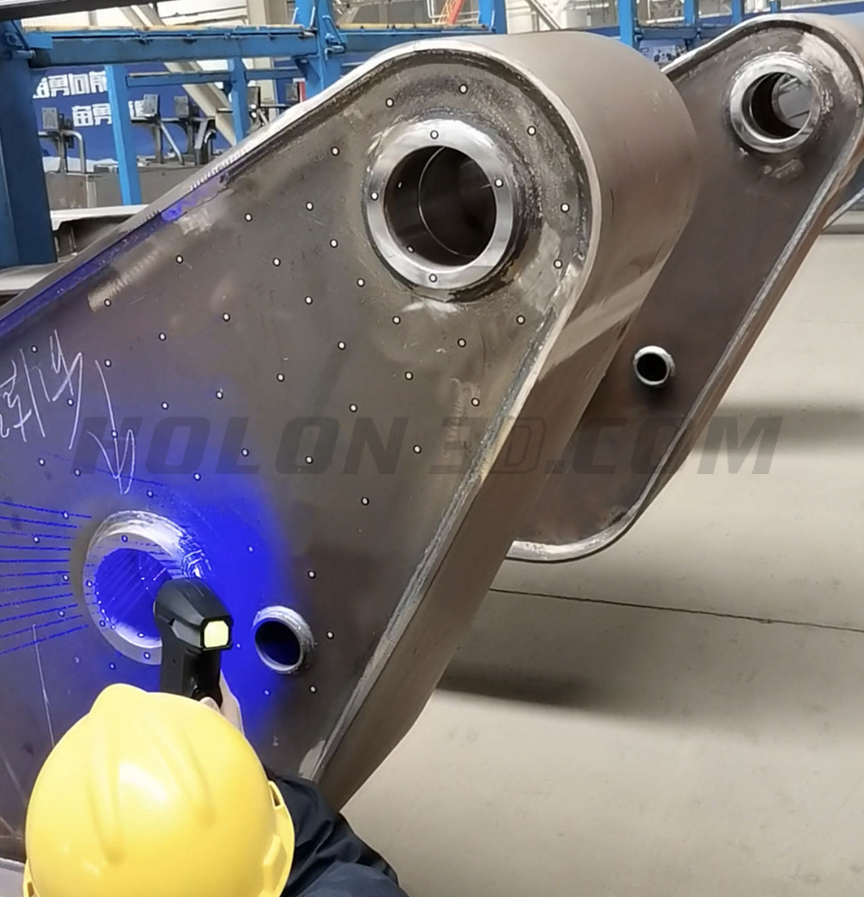

Three-dimensional scanning site map of crane

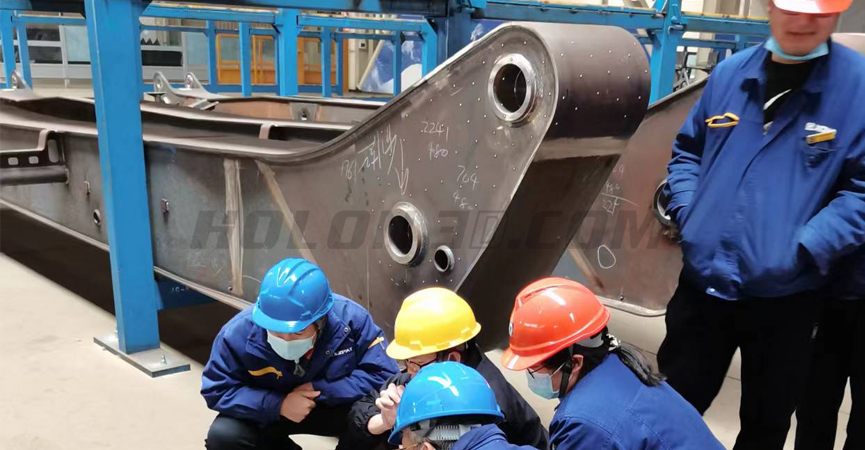

Three-dimensional scanning site map of crane
解决方案|Holon solutions
Advantages of portable handheld 3D laser scanning:
In the complex and changeable crane work site, it is easy to take and test. Compared with the traditional detection method, its most fundamental advantage is that its highly portable detection method simplifies the original complex detection process.
With its own deep-hole scanning mode, the single-line laser has better data capture ability for deep-hole scanning when detecting the size of the aperture part, providing high-precision data support for subsequent detection.
The 3D scanner participates in the regular maintenance of large industrial equipment, which greatly improves the efficiency of large equipment maintenance, increases the working reliability and service life of the equipment, and provides guarantee for the mechanization and automation of industrial production.

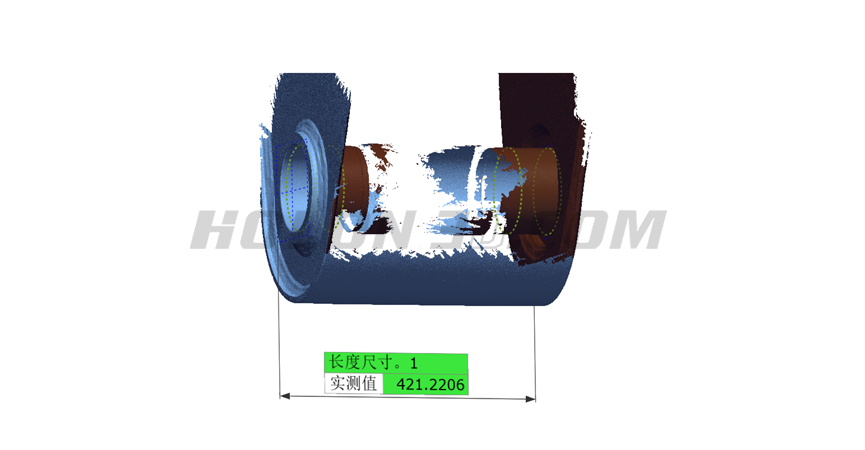

Crane data analysis chart

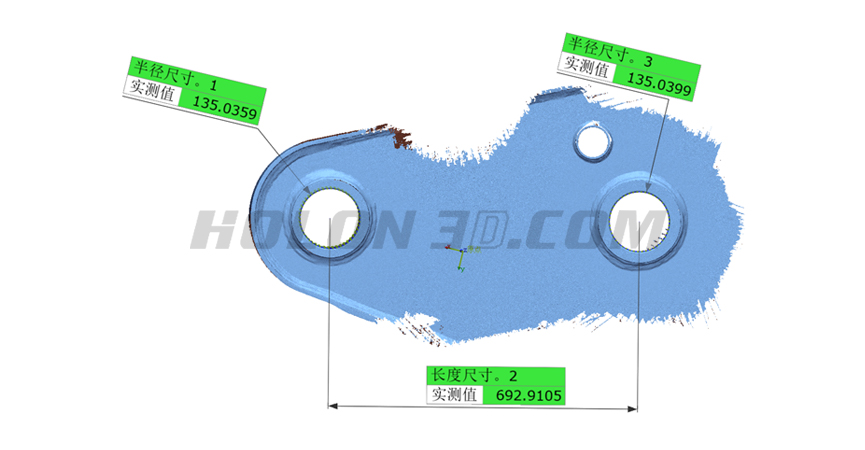

Crane data analysis chart
