The customer is a well-known brand bicycle design and manufacturing company, as people advocate low-carbon life, convenient travel, the demand for bicycles and manufacturing technology gradually mature, which promotes the development and research of bicycles. After years of development, the use of shared bicycles has been welcomed by major cities.

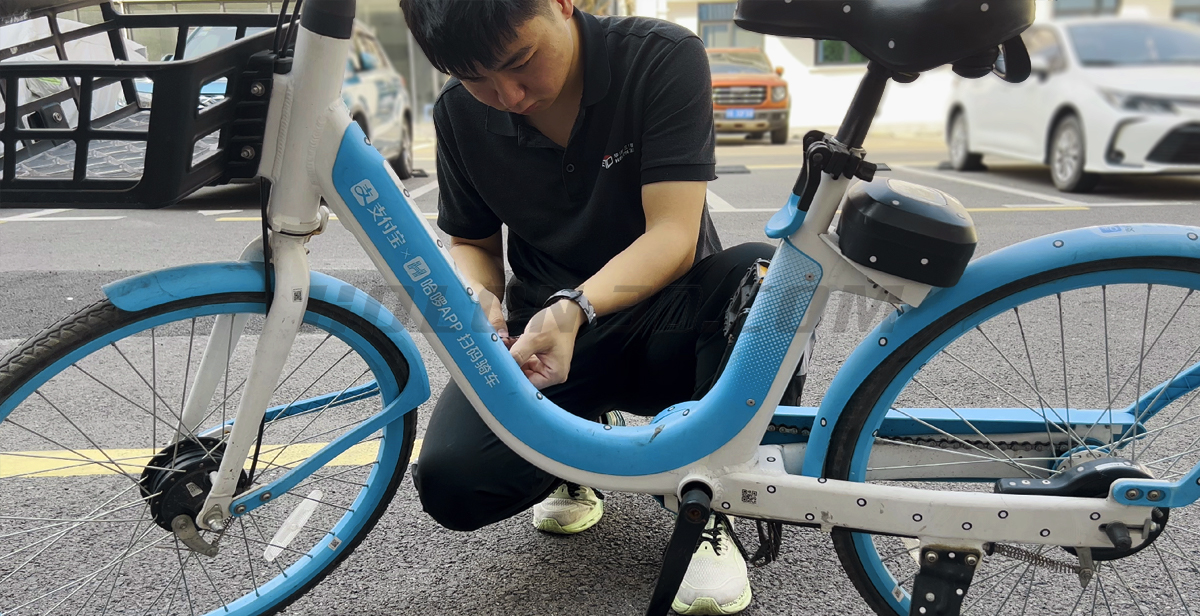

Bicycle scanning scene Figure 1-1

Practical problems|面临问题

    1. The bicycle model is an important link in the design and development of the bicycle, and the qualified model provides an important basis for mold making.
    2. The bicycle will have a combination point, and the assembly of the later parts needs to be high-precision cutting. The design and development team of the appearance carries out secondary design according to the three-dimensional model.
    3. The vehicle arc is large, it is difficult to use traditional measurement methods, it is impossible to quickly obtain accurate three-dimensional data, and manual errors are prone to occur.

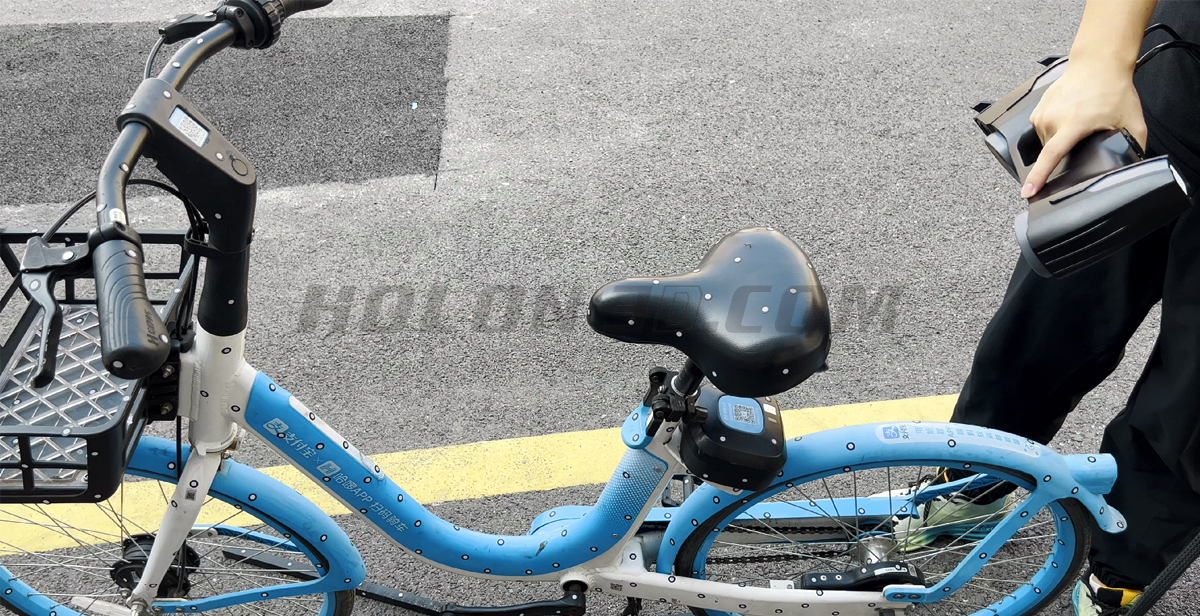

Bicycle scanning scene Figure 1-2

Holon solutions丨解决方案

    Hualang 3D technical engineers use handheld 3D scanner A22 scanning to quickly obtain 3D data of the whole bicycle, improve work efficiency, handheld convenient and flexible, light and easy to carry, sensitive and convenient operation process, 22 laser line harnesses, fast scanning speed, multi-mode switching scanning accuracy, strong stability, a wide range of applications.
    Use the handheld 3D scanner A22 to quickly scan to obtain high-precision point cloud data of the entire bicycle. Import 3D software for data optimization, successfully solve customer problems, and achieve the accuracy and effect of customer needs. It accelerates the speed of customer design, processing, research and development.

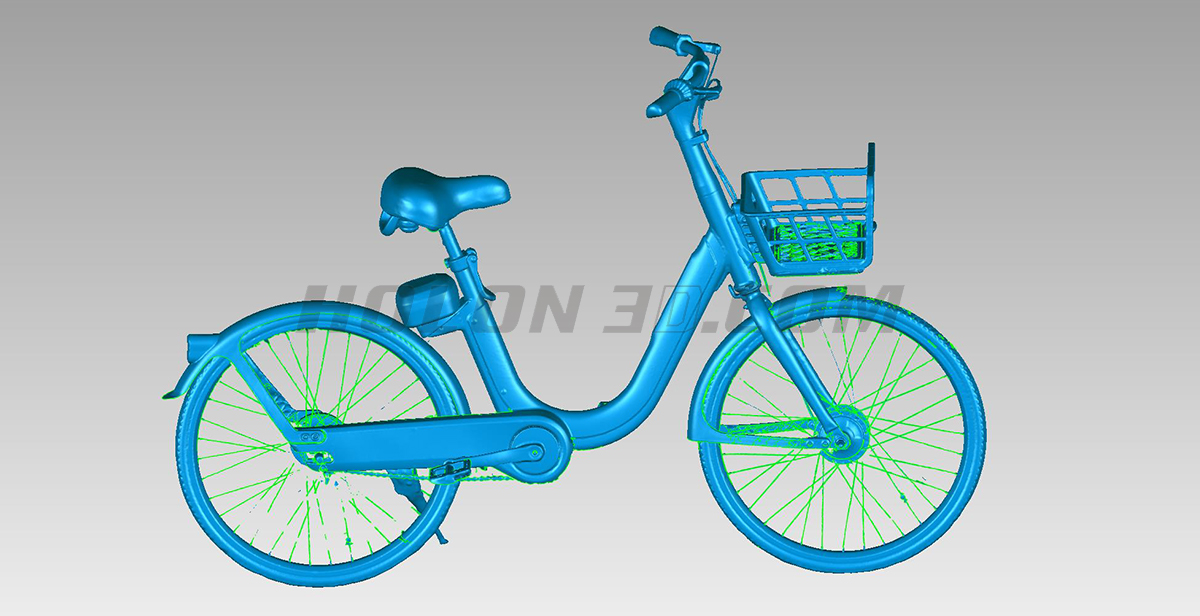

Bicycle STL Figure 1-1

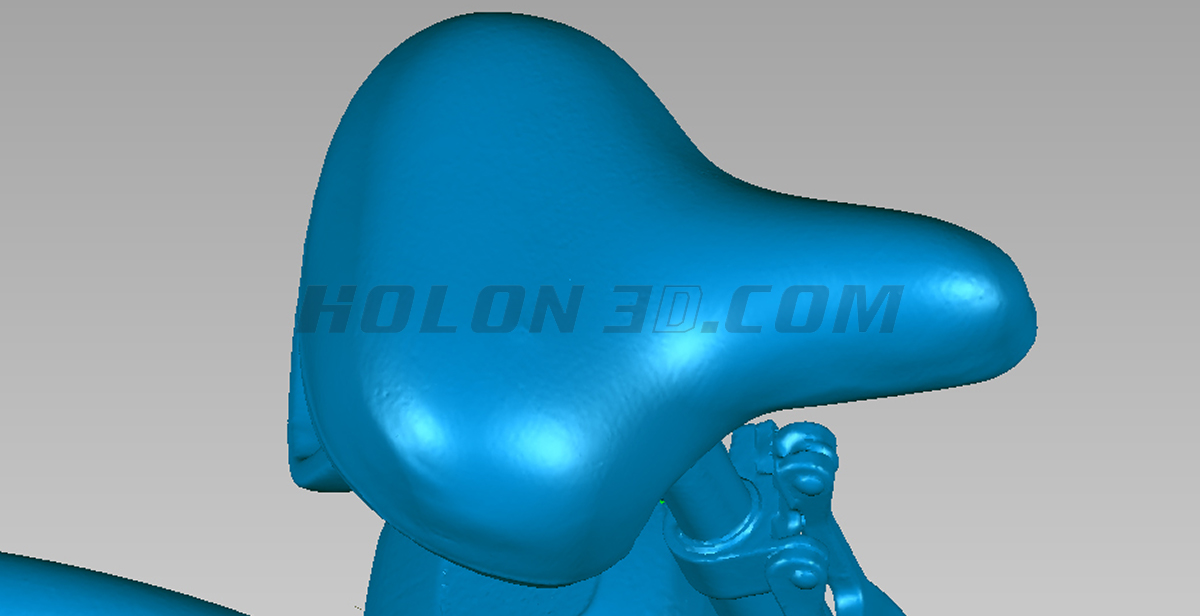

Bicycle STL Figure 1-2

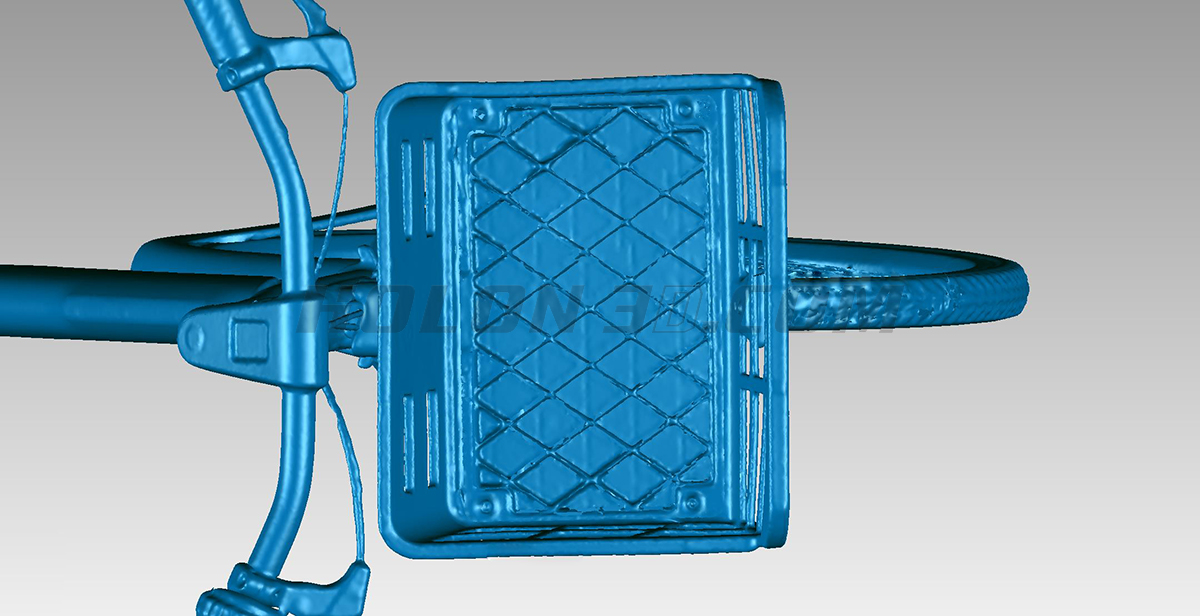

Bicycle STL Figure 1-3
