Air travel has increasingly become one of the important means of transportation, and passengers' riding experience has been paid more and more attention. The sound insulation inside the cabin has become one of the main problems, and the air tightness of the covering parts in the aircraft is a direct factor.

Practical problem

1. In order to improve the coincidence degree of aircraft panel assembly, obtain the three-dimensional data of the processed inner panel.
2. Using traditional measuring tools to obtain the special surface data of aircraft inner panel is incomplete, which can not meet the needs of customers.

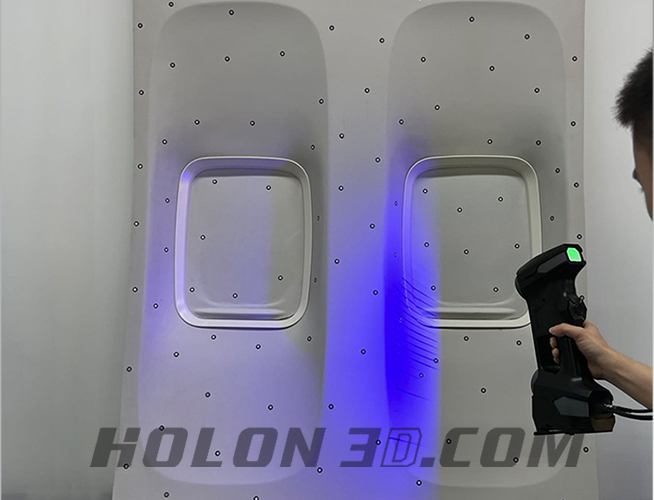

On site scanning diagram of aircraft inner panel

Holon solutions

Use the HOLON 3D handheld 3D scanner Holon B71 and 30 crossed blue laser lines to obtain 3D data quickly and accurately. Through the comparative analysis and detection of three-dimensional data, the cumulative error of data splicing is minimized, the sound insulation effect of aircraft panels is ensured, and passengers have a more comfortable ride experience.

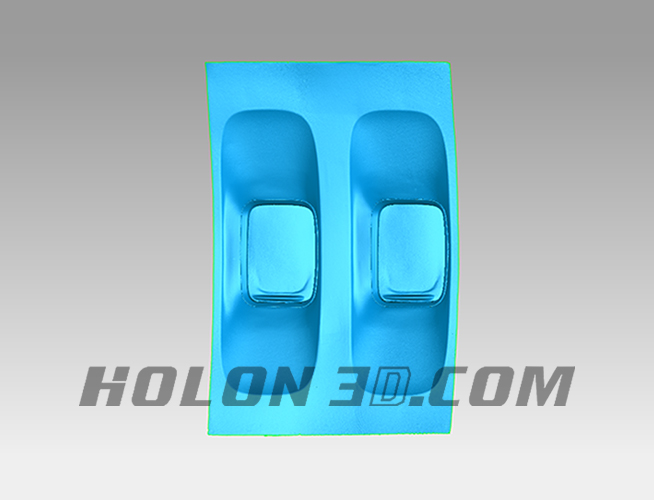

STL data diagram of aircraft inner panel

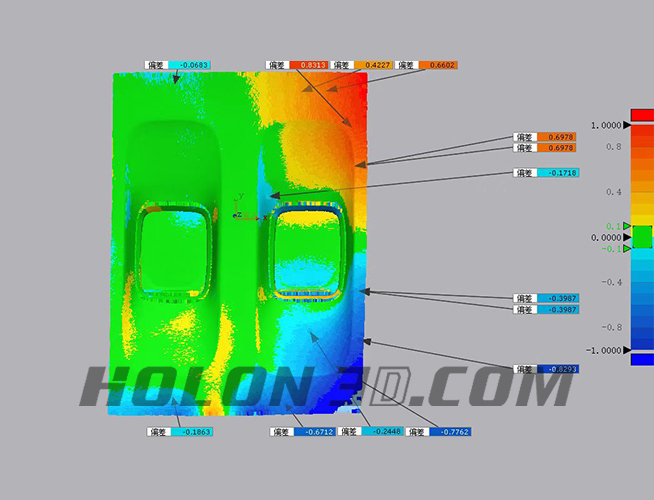

Comparative inspection drawing of aircraft inner panel
