Drake

The most comprehensive scan of the most professional portable wireless 3D scanner

The Drake handheld 3D scanner is the most comprehensive and professional portable wireless 3D scanner on the market today. The three modes and three groups of lenses can be flexibly switched according to the size of the workpiece to be measured. It can be used to scan different types of objects, as small as It is a simple, portable, high-precision multi-mode handheld wireless 3D scanner that can easily complete the work from coins, as large as airplanes and yachts.

Product features

●High efficiency

Fast speed (only 15 minutes for whole car scanning), high

efficiency, good effect, no blind spots


   ●Convenient and fast

     Small size, light weight (2.3kg), easy to carry, easy to use

●Diverse scanning methods

Various scanning modes, double-mode scanning for

sticking and not sticking

   ●Wireless scanning

     Out of the box, no need to connect the data cable and power

cable, truly wireless 3D scanning

●Large data capacity

Support 100G data capacity storage

   ●Large capacity battery

     Built-in computer and large-capacity battery (can work

uninterrupted for 1.5 hours), touch screen real-time synchronous display

●Display is convenient and quick

Built-in computer, real-time display on touch screen

    ●Multiple modes, can be switched at will

      Three modes can be switched flexibly, from small coins

to large airplanes and yachts, all of which can easily complete the work


Technical advantages

Portable wireless

True wireless scanning, no need to connect data cable and power cable, built-in battery, ready to use out of the box.

Industrial design

Small size, flexible use, built-in computer, touch screen real-time display

Multiple modes are available

Drake's three modes can be switched flexibly, ranging from coins to aircraft and ships, all of which can easily complete the scanning work. There are various scanning methods, which can realize the scanning of sticking and non-sticking.

Environmental adaptability

It is not affected by the environment, adapts to various complex application environments, and has good adaptability; it can be used in various environments and three-dimensional applications of different sizes of surfaces

specification


Min

Midi

Maxi

                  Precision performance

                          0.03%/m

                           0.03%/m

                              150um

Resolution

0.15mm

0.4mm

0.6mm

accuracy

20μm

40μm

70μm

Texture camera resolution

1.3MP

1.3MP

1.3MP

light source

LED,White light

LED,White light

LED,White light

Depth of field

18cm - 30cm

33cm - 65cm

50cm - 100cm

Measuring distance

22cm

45cm

75cm

Measured object size

0.5cm - 20cm

10cm - 100cm

30cm - 800cm

Scanning area per frame

(50x64)-(96x128)

(158x211)-(321x429)

(428x571)-(857x1142)

Frame rate per second

12

12

12

Data collection speed

Every second 1,200,000 point

Multi-core processing

support

Data Format

STL, OBJ, WRML, PLY

Size

36cm x 25cm x 11cm

weight

2.5Kg

Battery

Built-in rechargeable, replaceable battery

Battery

12V, 60W

touch screen

Built-in rechargeable, replaceable battery, built-in 7-inch screen

software

HOLON3DKit(附带)

Data transmission method

USB驱动或WIFI

Computer system configuration

Windows8.1,10;;NVIDIA Geforce 400;内存:16GB

Operating temperature

+5℃ - +35℃

Working humidity

20 - 80%

video

Product accessories

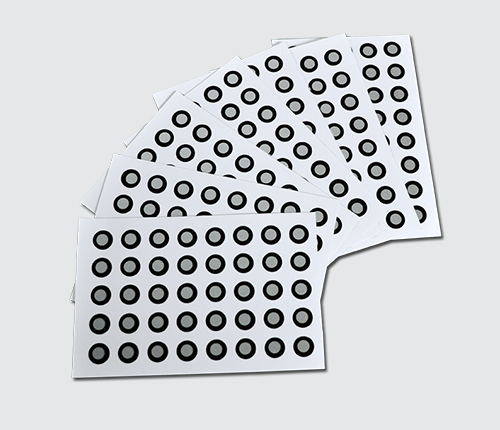

荧光标志点

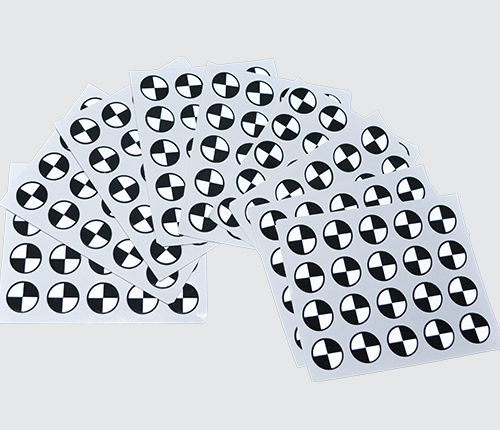

角型标志点

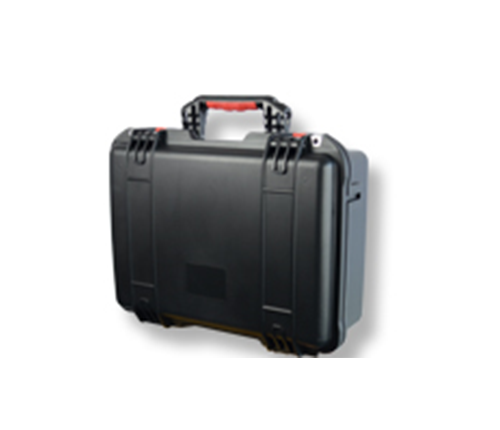

仪器箱
