A well-known company in Shenzhen needs to obtain 3D data on the appearance of the robot base and design the protective cover of the robot base. Our technicians are invited to perform 3D scanning of the robot base and obtain high-precision 3D data to provide the production design of the protective cover of the robot base. Effective data support.

Physical map of the robot base

Practical problems

The robot base has a complex shape, different surface contours and many holes. Customers require very high accuracy for the appearance data and hole positions of the robot base. Traditional measurement methods are cumbersome and time-consuming, and it is not easy to accurately and quickly measure and inspect the overall structure of the robot base. Areas such as hole positions and water chestnuts may cause The amount of 3D data obtained is incomplete, and the accuracy cannot meet customer requirements.

Physical map of the bottom of the robot seat

Holon solutions

Due to the complex surface contour and multiple holes of the robot base, customers have very high requirements for accuracy. Hualang 3D technical engineers put forward a solution: use the camera-based 3D scanner HL-3DS+ to quickly scan to obtain the 3D data of the robot base, which is not only fast, convenient to operate, short time-consuming, and extremely accurate, which meets the scanning needs of customers and succeeds. Solve the problems faced by customers.

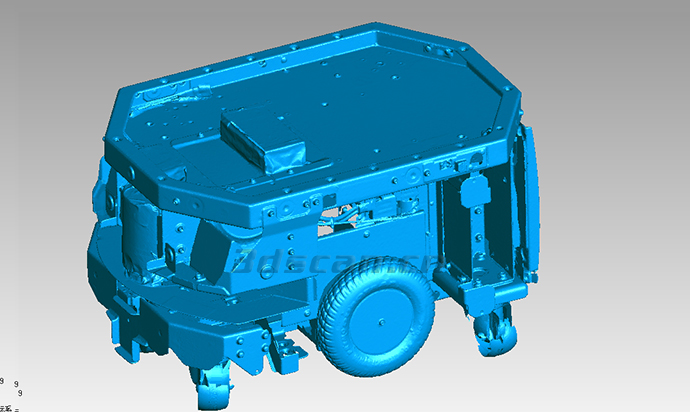

Robot scan data graph

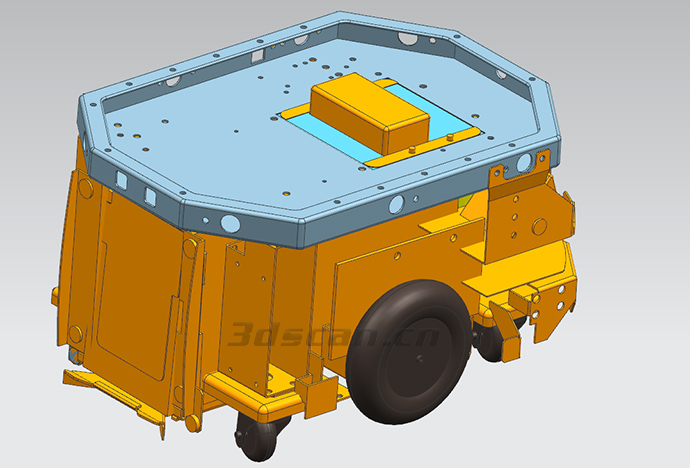

Robot base data map

Robot base data map
