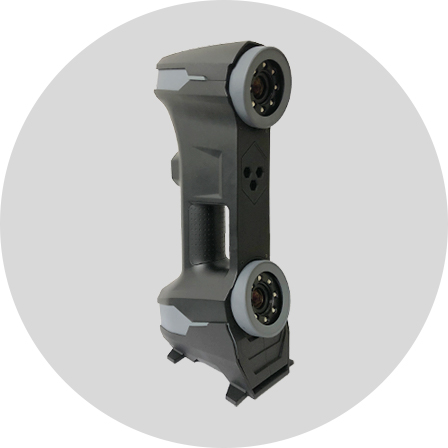

HOLON 760

The portable design of HOLON 760 handheld 3D scanner has fast scanning speed and high volume accuracy of single machine

Adopt a new handheld design,  easy to carry, take it and use it,high work efficiency, can flexibly formulate a scanning plan according to user needs, and can cooperate with our company's three-dimensional photogrammetry system (HL- 3DP) Eliminate accumulated errors and improve the overall scanning accuracy of large workpieces. It adopts 14+1 red laser lines, dual industrial cameras, automatic marking point stitching technology and scanning software, supporting photogrammetry and self-calibration technology. It is suitable for on-site 3D scanning, field 3D scanning, large workpiece 3D scanning, etc. The operation process is flexible and convenient, and it is suitable for various complex application scenarios.

Product features

● High precision

   The single-machine measurement accuracy is up to 0.03mm,

and it can easily scan large and medium objects without the

help of a photogrammetric system


   ● Light source form

      7 groups of cross laser lines plus one laser line total 15 laser

lines. Multi-line mode can be switched to single-line laser

scanning mode, suitable for scanning deep holes and blind spots

● Fast measurement speed

   The number of marking points is halved, and the scanning

speed of 7 sets of cross laser lines is 480,000 times per second,

which greatly improves the scanning efficiency

   ● Cooperate with photogrammetry

      When scanning large objects, it can cooperate with

our company's 3D photogrammetry system to eliminate e

rrors and improve the overall scanning accuracy of large workpieces.

Industrial design

    easy to carry, easy to operate, greatly improve work efficiency,

new independent research and development technology is guaranteed

   ● Mobile scanning

      Can be carried with you, can be used indoors and

on-site, without being affected by the environment

● Real-time visualization

   Scan data while scanning, and you can check the scanning

effect through the computer screen. Missing can be filled immediately.



Technical advantages

Advanced laser technology

The blue laser light source is used to improve the scanning accuracy and adaptability. Product details can be clearly captured, and the scanning data fineness has been greatly improved

Industrial design

The scanner is small and easy to carry, and can be operated with one hand; the button design is flexible to control, and there is no need to go back to the computer interface for operation. Can improve the efficiency of work scanning, safe and secure

Photogrammetry function

The system has its own photogrammetry function, which makes the scanning accuracy higher and the technical level is better than that of the same industry

Wide application range

It is not affected by the environment, adapts to various complex application environments, and has good adaptability; it can be used in various environments and three-dimensional applications of different sizes of surfaces

specification

Product number

HOLON 760

weight
0.83kg
size

60 x 145 x 307 mm

Measuring rate

480000Times/sec

Scan area

410 x 375 mm

light source

14 laser lines (+1 laser line)

Laser safety level

II(Eye safety)

Resolution

Highest0.05 mm

Splicing method

Automatic splicing of mark points

Data accuracy

    Up to0.03mm

Reference distance

   300mm
Scan depth of field270mm

Scanning range (recommended)

0.1-10Meter(Expandable)

Volume accuracy

             0.03 mm + 0.06 mm/m

Volume accuracy

(combined with HL-3DP)

               0.03 mm + 0.015mm/m

Output format

.stl、.obj.、.ply、.txt、.asc、.xyz、.Etc. can be customized

transfer method

 USB 3.0

power supply

  Alternating current(110 - 240V)

Operating temperature

   -10 - +40 °C

Operating humidity range (non-condensing)10-90%

Compatible software

3DSystem(Geomagic Solutions)、lnnovMetric Software(polyWorks)、Dassault Systemes(CATIA V5和SolidWorks)、PTC(pro/ENGINEER)、Siemens(NX和Solid Edge)、Autodesk(lnvebtor、Alias、3ds Max、Maya、Softimage)、Rhino
